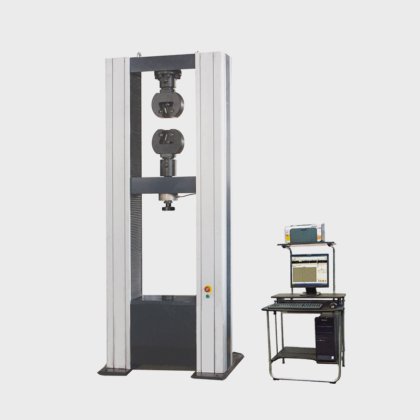

Computer universal test equipment in Dongguan, Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Model:
- HD-B612-S
- Payment:
- L/C, D/P, T/T
- Max. force
- 10T (100KN)
- Load cell
- Germany brand load cell for high accuracy
- Control system
- PC with windows 7 system
- Motor
- Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
- Force reading
- kgf, Ibf, N, KN, T etc
- Stoke
- 1100mm including fixture
- Load cell resolution
- 1/250,000
- Load precision
- within ±0.5%
- Test speed
- 0.01~300mm/min (adjustable)
- Software
- TM 2101
- Curves display
- Load- elongation, Elongation-time, Time-elongation, Stress-strain
- Data display
- Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
- Safety features
- E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat
- Hd-609/604
- 2000 kg (20KN)Max. Force / for Tape, rubber, plastic, textile, waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials
- Hd-611
- 10T (100KN) Max. Force / for waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials
- Hd-615
- 5000 kg (50KN) Max. Force / for textile, waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials
- Hd-b616
- 20KN-1000KN (Hydraulic) load range / for waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials
- Category
- Materials Testing in China
- Subcategory
- Machinery
- Subcategory 2
- Haida products
- Subcategory 3
- Tensile test equipment
- Listing ID
- 99541603
Description
Description:
universal test equipment with 10T max force can do tensile test, tear test, peel test, bond test with different clamps for wire,metal,plastic,rubber and other kind of materials.
This universal test equipment uses the motor to drive screw to move fixtures. Fix sample between upper and lower fixture and pull sample by the upper fixture upward with specified speed. The load cell connecting with upper fixture will sense the force and then convert it into voltage sign to the display screen. Force value will be displayed automatically on the screen.
Applications:
Design Standard(inculding but not limited to...):
Specification:
Machine Picture:
Software:
The TM2101 software is designed purposely for computer controlled electronic universal testing machine, used for tension, compress, bend, shear, tearing andpeel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e.
