Aluminum Metal Tube Filling and Sealing Machine with Folding and Crimping Function in Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Provided
- Automatic grade
- Semi-Automatic
- Material type
- Paste
- Filling valve head
- Multi-Head
- Feed cylinder structure
- Dual-Chamber Feeding
- Dosing device
- Rotor
- Filling principle
- Negative Pressure
- Packaging container lifting structure
- Pneumatic Lifting
- Structure
- Rotary
- Packaging
- Case
- Packaging material
- Wood
- Product name
- Aluminum Tube Filling and Sealing Machine
- Keywords
- Tube Filling and Sealing Machine
- Driven type
- Electric
- Dimension(l*w*h)
- L1140mm*W600mm*H1580mm
- Machinery capacity
- 10-30tubes/Min
- Air pressure
- 0.4-0.6MPa
- Filling range
- Can Be Customized
- Filling volume
- Can Be Customized
- Weight
- 220kg
- Packing weight
- About 260kg
- Voltage
- 1p/220V50Hz
- Body material
- SUS304
- Transport package
- Wooden Case
- Specification
- Stainless steel SUS304/316L
- Hs code
- 8422301090
- Production capacity
- 15sets/Month
- Category
- Bending & Forming in China
- Subcategory
- Filling machine
- Subcategory 2
- Packing machinery
- Subcategory 3
- Packaging & printing
- Listing ID
- 99258185
Description
Aluminum Metal Tube Filling And Sealing Machine With Folding And Crimping Function

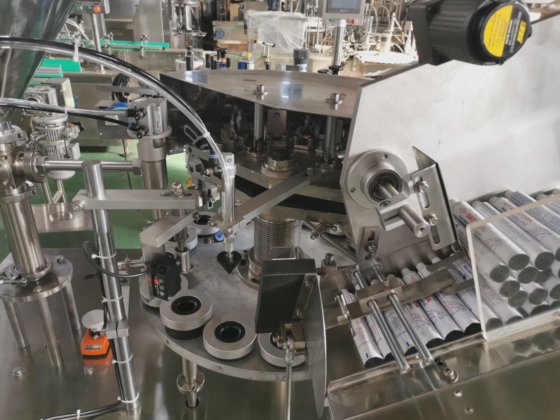

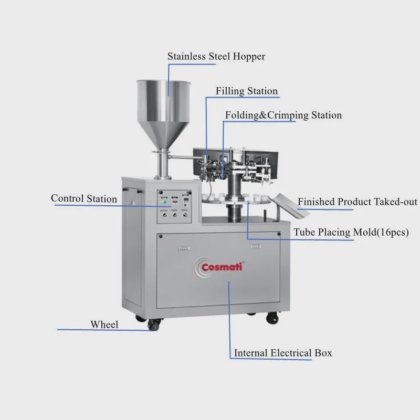

Detailed Photos
Product description
*This machine is mainly used for quantitative filling and sealing of materials with metal hoses as packaging containers. This machine is widely used in the packaging of medicine, daily chemicals, food, chemical, and other industries.
*The operation process is to manually insert the metal hose into the indexing coil base (16 stations), use the mechanical transmission to automatically index, and photoelectric detection to confirm that there is a tube to be automatically metered and poured into the tube, and then two-way four-fold tail sealing, Finished product exit.
Technical parameter
Model
CM-AF02
Production Capacity
10-30tubes/min(depending on different materials and filling volume)
Filling range
10-100ml
Applicable tube height
80-180mm
Applicable tube diameter
13-35mm
Number of workstations(cups)
16
Services offered by seller
This seller offers new machines
This seller can help you plan & execute entire projects
This Seller offers repair & maintenance services
This seller offers spare parts
This seller offers transport & logistics
$9,500 USD
