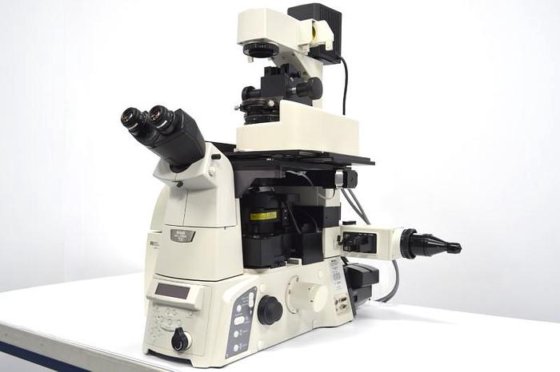

Applied Biosystems Arcturus XT Laser Capture Microdissection (LCM) System in Walpole, MA, USA

- Includes new fluorescence filters
- Technical sales consultation available
- Continental USA 120 DAYS WARRANTY & 60 DAYS INTERNATIONAL
- Includes remote microscope training session and software overview
- More info about our Microscopy Capabilities or view the Microscope Buying Guide
---------------------------------------------------------------

The Predecessor to Accuva Cellect LCM System

This is what you will receive before customizing this system:

Arcturus XT LCM System Configuration:

Microscopy Techniques:

- Brightfield, Phase Contrast, Fluorescence Microscopy

Microscope Base:

- Nikon Eclipse ArcturusXT Inverted Microscope

Microscope Head:

- TI-TD Binocular Head
- (2) CFI 10x/22 Eyepieces

Fluorescence Light Path:

- TI-FL Epi-fluorescence illuminator unit

Fluorescence Illumination:

- X-Cite 120PC Q w/ collimating adapter and light guide

Fluorescence filter cube turret:

- TI-FLC-E Motorized 6-position Filter Turret

Fluorescence Filter Cubes:

- Three brand new filter sets of either DAPI, FITC, Texas Red or CY3
- *Other filters may be available - please inquire*

Brightfield Light Path:

- TI-DH Illumination Pillar

Brightfield Illumination:

- D-LH/LC 12v 100w Halogen lamp

Objective Turret:

- TI-ND6-E Motorized 6-position Objective Turret

Objectives:

- Nikon Plan UW 2x/0.06
- Nikon Plan Fluor 4x/0.13
- Nikon Plan Fluor 10x/0.30 Ph1 DL
- Nikon S Plan Fluor ELWD 20x/0.45 Ph1
- Nikon S Plan Fluor ELWD 40x/0.60 Ph2
- Nikon S Plan Fluor ELWD 60x/0.70 Ph2

Lasers:

- Infrared (IR) Capture Laser: Solid-state, near-IR (810 nm)
- UV Cutting Laser: Solid-state, passive Q-switched, diode-pumped (355 nm)

Condenser:

- TI-CT-E Motorized Condenser Turret
- LWD 0.52 Condenser Lens
- Ph1, Ph2 inserts

Stage:

- Motorized XY stage
- Insert for three 75mm x 25mm slides
- Trackball controller

Camera ports:

- 100% Eyepiece,
- 100% Left camera port
- 100% Right camera port
- 20% Eyepiece, 80% Left camera port

Camera:

- Integrated Imaging Source DFK 31A403 Color CCD camera

Computer & Software:

- Desktop with ArcturusXT control software
- Touchscreen monitor, keyboard, mouse

Accessories:

- Necessary power and communication cables

This configuration includes any 3 of these new filter sets.

- New filter set - DAPI (EX: 365/28nm, DM: 405nm, EM: 445/50nm) (Dye compatibility: DAPI/Hoechst/AlexaFluor 350)
- New filter set - EGFP/FITC/Cy2 (EX: 475/30nm, DM: 500nm, EM: 530/40nm) (Dye compatibility: EGFP/FITC/Cy2/AlexaFluor 488)
- New filter set - TRITC/Cy3/Dsred (EX: 545/20nm, DM: 562nm, EM: 605/60nm) (Dye compatibility: TRITC/Cy3/RFP/Rhodamine/AlexaFluor 546)
- New filter set - Texas Red (EX: 560/20nm, DM: 585nm, EM: 630/40nm) (Dye compatibility: Texas Red/mCherry/AlexaFluor 594)

Automated/motorized capabilities of this system:

Installed automation/motorized components:

- Motorized XY stage
- motorized Z-axis drive
- Motorized filter cube turret
- Motorized objective turret
- Motorized condenser turret

Benefits of motorized/Automated Z-Axis drive:

- Automatic parfocality adjustment
- The ability to recall previously saved focus levels
- Automated management of Z positioning/ Fine-coarse control

This system's software highlights:

- Automated Cell Capture: precise laser control for seamless sample acquisition.
- Real-Time Imaging: live imaging during capture for verification.
- Customizable Settings: adjustable laser and stage parameters for different samples.
- Data Export: supports multiple formats for downstream analysis.
- Preloaded Protocols: ready-to-use and customizable workflows.
- Fluorescence/Brightfield Modes: automated switching for versatile imaging.
- Batch Processing: handles multiple samples efficiently.

We can customize this system to fit your requirements:

Increase Maximum Magnification and Image Quality:

- System can be configured for magnification between 20x and 600x (with 10x Eyepieces)
- We can add standard higher magnification Nikon microscope objectives
- We can add high-end Nikon Apochromat objectives

Enhance fluorescence capabilities by adding/changing filters and upgrading light sources.

- Additional filter cubes
- Additional filter sets to match your fluorochromes.
- Xenon, Metal Halide, or LED Fluorescence microscope light sources

We will also ensure the fluorescence light source matches your selected filter sets.

Enhance imaging capabilities:

- We offer various advanced CCD, sCMOS, and EMCCD camera options for higher-quality images.

Commonly Requested Customer Upgrades

- High-End CCD, sCMOS Cameras
- LED or Metal Halide Fluorescence Light Sources
- Polarization, or the DIC configurations
- Higher Magnification Objectives
- Higher performance Fluor or APO objectives
- Motorized XY Stage (stage, controller, joystick)

We are excited to help build and configure the right system for you!

Arcturus XT LCM System Overview:

- The Arcturus XT LCM System combines infrared (IR) laser capture and ultraviolet (UV) laser cutting technologies, providing precise sample isolation for molecular analysis.
- Designed for a wide range of biological specimens, it ensures contamination-free collection of specific cells or regions of interest for downstream analysis such as DNA, RNA, and protein extraction.
- Applications include oncology, pathology, neuroscience, and any research where precise isolation of cells is critical for subsequent molecular analysis.

Key Features:

- Dual Laser System: IR laser for capturing cells and UV laser for precise cutting.
- Advanced Optics: equipped with Nikon Eclipse Ti-E Inverted Microscope for high-quality imaging.
- Fluorescence and Brightfield Imaging: supports brightfield, phase contrast, and fluorescence imaging for enhanced cell visualization.
- Objective Flexibility: multiple objective lenses, from 2x to 60x magnification, offering various levels of detail for sample analysis.
- Software-Controlled Operation: fully automated, controlled through ArcturusXT software, simplifying complex workflows.

- Brochure: Arcturus XT LCM System Brochure
- Manual: Arcturus XT LCM System Manual

Check out our microscopy capabilities:

https://www.bostonind.com/our-microscopy-capabilities

Why do so many customers choose to order from us?

Our Advantage

- We make sure to match the microscope capabilities to your requirements.
- We have experience servicing and repairing these microscopes.
- This microscope goes through an extensive set of service steps before shipping.
- We offer detailed photos and videos of the microscopes you buy.
- We are an approved pre-owned equipment vendor to many large US, Canadian, and EU Universities.
- We are an approved pre-owned equipment vendor to many Fortune 500 US and International Biopharma companies.
- Many upgrade and repair parts are in stock.
- Remote installation and microscope operation training are available.
- On-site installation may be available in the Boston Area (New England area)
- Expert US or International shipping is available (see the shipping tab on how we pack and feel at ease)

Our Guarantee

- Warranty
- An extended warranty may be available.
- You get after-sales technical support.
- Customer references are available.
- This LCM system will be complete and working!
- Smooth process from the initial quote to order fulfillment.

*ME* Medium Crate

500#

PLEASE NOTE QUESTIONS BELOW ARE ANSWERED IN MORE THOROUGH DETAIL ON OUR WEBSITE

Q: I am not 100% sure about the configuration I need, can your team assist me with selecting the right microscope for me?

A: Absolutely, we can start with your application, samples, or challenge to assist you in selecting the right configuration and the right microscope for you.

Q: Can you make the necessary modifications to the standard configuration to fit my application?

A: Certainly, we carry a large variety of upgrade components to ensure the final microscope configuration will fit your application

Q: What steps do you take to verify, service, and confirm the functionality of this Microscope?

A: Each microscope goes through extensive service to ensure it performs to specification.

Q: Can I view this microscope in person at your facility or do a live Zoom demo before it is shipped to me?

A: We can accommodate both in-person or Zoom demos.

Q: What about the warranty?

A: The microscope comes fully warranted for both parts and labor.

Q: Do you offer installation, service, etc?

A: We offer remote installation and training packages to get you familiar with this microscope

Q: What should I watch out for when buying a used/pre-owned microscope from another lab?

A: That it has no missing, broken, or incorrect parts for your application, any mechanical or motorized components have been serviced and lubricated, controller issues, good quality filter cubes, proper and undamaged objectives, and most importantly no dust in the light path or objectives.

Q: Do you have these and other microscopes on hand?

A: We carry this and many other microscopes from Nikon, Zeiss, Olympus, and Leica.

Q: I am from the University or College, do you accept Purchase Orders?

A: We accept purchase orders from all major US and Canadian universities.

Q: How fast will you ship?

A: We can ship within 2-3 days to about 2 weeks, depending on the final configuration required.

Q: Will my instrument be insured during shipping?

A: Absolutely! We insure all our shipments as long as we are the shipper. If a customer ships on their account, they handle insurance.

Q: Have you packed and shipped microscopes in the past?

A: We have extensive experience in safely shipping high-end and complex microscopes all over the world.

Q: Do you ship Internationally?

A: So far, we have shipped to almost every continent and over 30 countries.

Q: How much will I save buying it pre-owned, and is it worth it?

A: When compared to buying a new one, you will save up to 60% to 80% and have plenty of funds left over for an additional instrument or two.
