Evolution
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Stock number
- 305
- Weight of the saw
- approx. 1.100 kg
- Cutting depth
- 80 mm *1
- Saw motor power
- 5.5 kW (7.5 HP)
- Saw blade diameter
- 300 mm
- Saw blade bore
- 30 mm *2
- Emission sound pressure level at the workplace lpa
- 83 dB *3
- Saw blade speed
- 4800 rpm
- 1 extraction connection
- ø 140 mm
- Compressed air connection
- 6-10 bar
- Wattage
- 7.3 kW
- Mains connection
- 3 x 400 V / 50 Hz
- Category
- Wood Saws
- Subcategory
- Saws
- Subcategory 2
- Vertical panel saws
- Listing ID
- 97892053
Description
EVOLUTION – precision, ergonomics and functionality perfectly combined.
Automatic functions, such as automatic locking and swivelling or the automatic insertion and removal of the sawing unit, clearly facilitate the daily work.
You too can benefit from the advantages of EVOLUTION. It can be controlled via a 12" touch screen computer. The intuitive user interface ensures perfect processing of your orders in every detail.
Highlights of the STRIEBIG EVOLUTION
Always a good decision

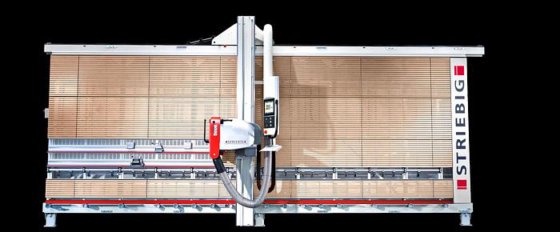

For years, the EVOLUTION has been at the forefront of hand-guided vertical panel saws. An EVOLUTION embodies high value through its appearance and quality. Numerous automatic functions facilitate your daily work.

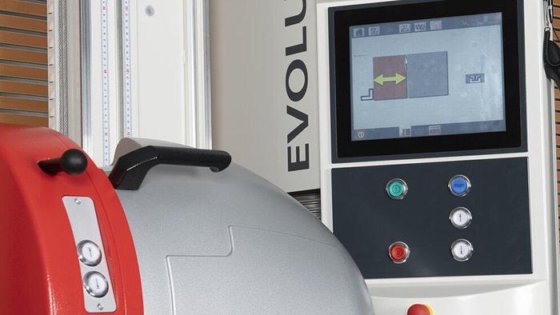

Bildschirm mit Touch-Screen visualisiert alle Funktionen

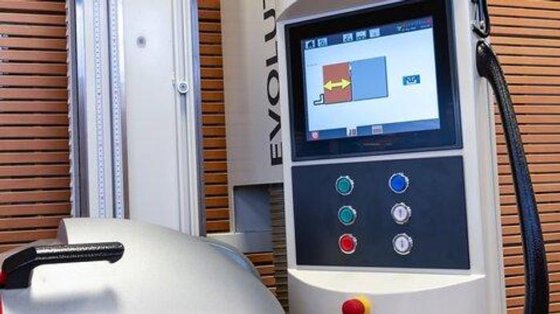

Touch and work
“Touch & saw” – this revolutionary concept lets you operate the saw safely and easily.
The fingertip is enough to control the EVOLUTION. The 12" color display of the touch screen visualises all functions.

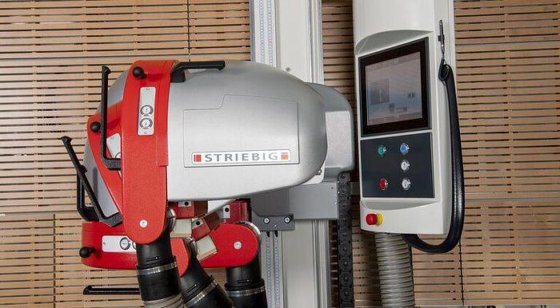

Schwenkvorgang von Horizondal auf Vertikal vom Sägeaggregat

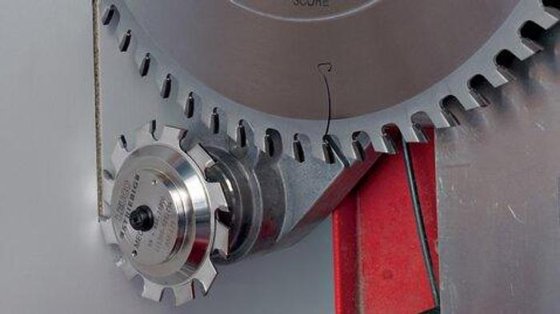

Saw beam & saw unit – always the right cut
The automatic swivelling and the automatic insertion and removal of the sawing unit are functions of the STRIEBIG EVOLUTION that support the sawing process.
Automatic fine adjustment of the sawing unit during horizontal cutting.

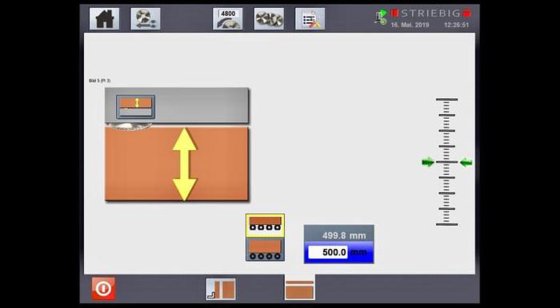

The sawing unit is positioned to the approximate cutting height for horizontal cutting. When the arrow on the scale in the control unit turns green, the motor carriage will automatically lock and fine adjustment will be performed automatically.
