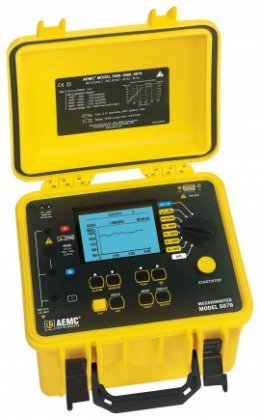

AEMC 5070 Graphical Megohmmeter with Analog Bargraph and DataView Software, 5000V in Wilmington, NC, USA
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Test voltages
- 500 V: 30kΩ to 2000GΩ (2TΩ) 1000 V: 100kΩ to 4000GΩ (4TΩ) 2500 V: 100kΩ to 10,000GΩ (10TΩ) 5000 V: 300kΩ to 10,000GΩ (10TΩ)
- Accuracy
- 1kΩ to 40GΩ: ±5% of Reading ±3cts 40GΩ to 10TΩ: ±15% of Reading ±10cts
- Voltage test/safety check
- AC/DC: 0 to 1000V
- Voltage warning indicator
- Yes >25 V
- Storage of readings over time r(t)
- 128kB Memory
- Storage of test results
- >1500 Test Results
- Power supply
- 9.6V NiMH Battery Pack
- Dimensions
- Case: 10.63 x 9.84 x 7.09" (270 x 250 x 180 mm)
- Weight
- Approx. 9.5 lbs (4.3 kg)
- Category
- Ohmmeters in USA
- Subcategory
- Electricity
- Subcategory 2
- Insulation resistance testers / megohmmeters
- Listing ID
- 97171310
Description
The only megohmmeter to offer both a graphical plot of the test right on the instruments, as well as a digital presentation of the test results. It has a large graphic display with five line alphanumeric display and graph and offers the ability to program up to three step voltage profiles, each containing up to five steps. It slso has an RS-232 port which provides the ability to configure the unit and run the test from a PC. Test results can be generated directly to a printer using the DataView
®
graphing and analysis software.
Features
True Megohmmeter
®
with selectable test voltage from 40 to 5100V, and fixed test voltages of 500V, 1000V, 2500V and 5000V
Insulation measurements from 30kΩ to 10TΩ
Automatic calculation of DAR, PI and DD ratios
Direct measurement and display of Capacitance and Leakage Current
Display resistance, test voltage and run time
Programmable test run times and PI ratio times
Smooth and Alarm functions
Automatic test inhibition (if live sample >25V)
$4,465 USD
