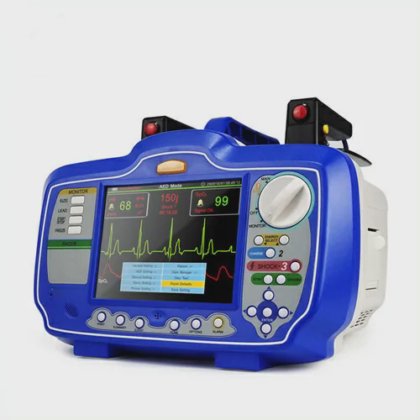

AED type Multifunction Bipasic defibrillator with Pacer function in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Display
- 7inch TFT
- Standard parameter
- AED,Bipasic,ECG,Printer
- Operation mode
- AED Mode And Manual Mode
- Application
- AMBLUENCE,First-Aid,ICU
- 5 languages available
- English.Russian.Spanesh.Chinese.Turkish
- Screen type
- High-Resolution Display
- Screen size
- 7 Inches (17.7 Cm) Diagonally
- Sweep speed
- 25mm/Sec
- Information
- Heart Rate . Lead/Pads. Alarm . On/Off . SpO2 . AED
- Waveform
- Biphasic
- Charge time
- Less Than 7 Seconds With A New Fully Charged Battery.
- Energy display
- Monitor Display Indicates Both Selected And Delivered Energy.
- Charge prompt type
- Voice And Visual Prompts.
- Electrode impedance measurement range
- 0-250 Ohms.
- Patient connection
- 3-Lead ECG Cable Or 5-Lead ECG Cable Paddles.
- Lead selection
- Displayed On Monitor Paddles I II III AVR AVL AVF V.
- Ecg size
- 0.25 0.5 1 1.5 2 4 Cm/MV Display On Monitor.
- Heart rate
- 20-300BPM.
- Heart rate alarm
- On/Off Displayed On Monitor User-Selectable.
- Smart alarms
- Beeper/Voice Prompts Indicate Shock Able Rhythm.
- Printing method
- High Resolution,Thermal Print Head
- Print-out mode
- Manual Or Automatic Or User-Configurable
- Paper width
- 50 Mm.
- Paper speed
- 12.5mm/Sec,25 Mm/Sec, 50 Mm/Sec
- Charge control
- Control On Device Front Panel,Press Key On Paddle
- Prompts
- Voice And Visual Prompts
- Engery selection
- Selectable At 2,5,7,10,20,30,50,70,100,150,200,300,360 Joules.
- Synchronized mode
- Synchronizes Defibrillator Pulse To Patient’s
- Measurement range
- 30~100% ±2% Between 80%~90% Others ±5%
- Alarm range
- User Set High Limit And Low Limit.
- Alarm accuracy
- ±10% Within Setting Values.
- Alarm time accuracy
- Less Than 12 Sec.
- Category
- Defibrillators in China
- Subcategory
- Machinery
- Subcategory 2
- Defibrillator monitor
- Listing ID
- 97079954
Description
Description
JQ-Xpress Portable AED Type Bipasic Defibrillator With NIBP,Spo2,Co2 And Pacer Function Optional
Technical Specifications:
JQ-Xpress Defibrillator Integrated Monitoring, Manual Defibrillation, AED And Pacer (Option). It Is A Professional Biphasic Defibrillator Monitor ,Suitable For Hospitals And Clinics.
Display
Functions And Prompts Alarm Selection And Limits Delivered Energy.
Defibrillator
ECG Monitoring
High-Resolution Thermal Printer
User Selectable 6 Seconds Delay
AED Mode
AED Function:Auto Analyze And Charge X3 With Programmable Auto Energy Level Selection,Screen Prompts,And Voice Prompts
Shockable Rhythms:Ventricular Fibrillation With Amplitude≥ 200uV,Ventricular Tachycardia With Rates ≥ 140bpm,And QRS Complex Wave Duration ≥ 140ms.
Manual Mode
R-Wave.”SYNC” Message Displayed On Monitor
Battery
Operating Time: For A New Fully Charged Battery: 60 Defibrillator Discharges At Maximum Energy Or 3 Hours Minimum Of Continuous ECG Monitoring.
