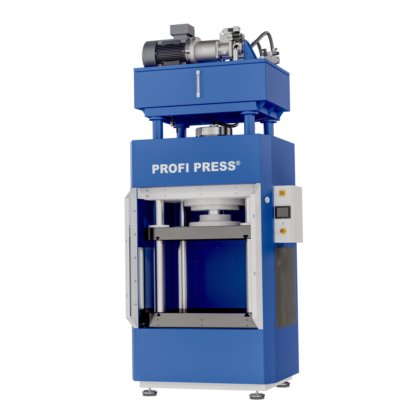

RHTC Profi Press in Nijmegen, Gelderland, Netherlands
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Force [tn]
- 50
- Motor power [kw]
- 4
- Working speed [mm/sec]
- 7.2
- Approaching speed [mm/sec]
- 31.3
- Return speed [mm/sec]
- 41.7
- Piston stroke [mm]
- 460
- Column diameter [mm]
- 80
- Table size [mm]
- 1050 x 710
- Between columns [mm]
- 760 x 420
- Vertical light [mm]
- 620
- Working height [mm]
- 750
- Total length (lateral) [mm]
- 1210
- Total width (frontal) [mm]
- 1610
- Overall height [mm]
- 2250
- Weight [mm]
- 2500

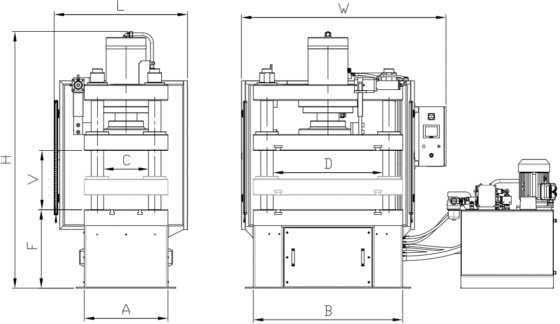

- A x b
- 1050 x 710 mm
- C x d
- 760 x 420 mm
- Category
- Presses in Netherlands
- Subcategory
- Four column presses
- Listing ID
- 96887415
Description
This
4 column hydraulic press (50 ton capacity)
is manufactured with 4 cylindrical columns to ensure a perfect parallelism of the upper table. We recommend this type of hydraulic press when you have work that requires a high accuracy or for special deep-drawing tasks.
Profi Press four column presses have a manual, semi-automatic or automatic mode and the presses work with 2 different cylinder speeds. With the NC-control you can digitally set the pressure, type of speed, piston stroke, holding time and save up to 100 different working cycles. Furthermore, these models are operated by an electric foot pedal.
All our hydraulic presses comply with CE-regulations and we produce them with solely high quality components to guarantee a great durability. Our 50 ton 4 column hydraulic press is made in Europe and we guarantee an extremely high quality of this press.
Contact us for more information
or ask us for a quotation via the button below.
