ASMetal Chain Grate Plate in Anshan, Liaoning, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Stock number
- Chain grate plate-01
- Subcategory
- Cement plant
- Subcategory 2
- Grate cooler
- Listing ID
- 95500887
Description
Our chain grate plates are made of alloy steel. The chain grate plate is durable and easy for maintain.

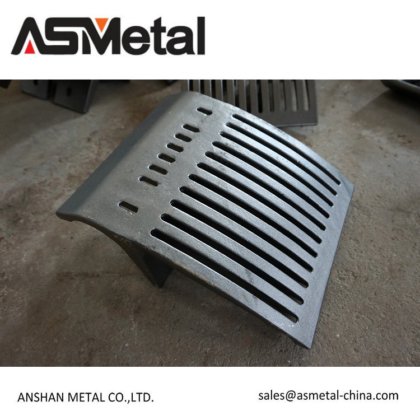

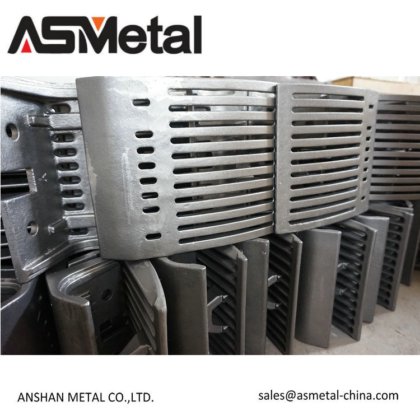

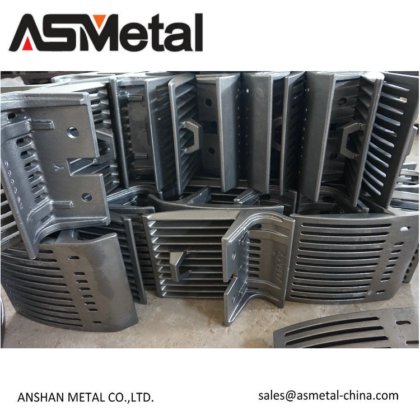

Chain grate plate
Introduction
The chain grate machine is a kind of special equipment working at extremely high temperature. The chain grate machine is widely applied in sintering and pelleting of metallurgy industry. The design of processing decide the length of
the chain grate.
The grate plate is the wear parts of the chain grate machine. When the chain grate machine is working, the grate plate is bearing material effect, and moving to the high-temperature region by low-temperature space under the traction of drive unit, in motion, heat exchange from lower to upper or is from top to bottom carried out with the material on grate plate top in the grate hole of hot blast by the grate plate.
Structure
The grate plate mainly consists of a head part plate, a tail part plate and side plates arranged on two sides of the head part plate;
