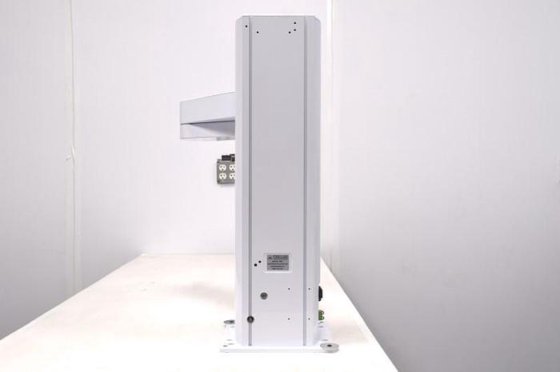

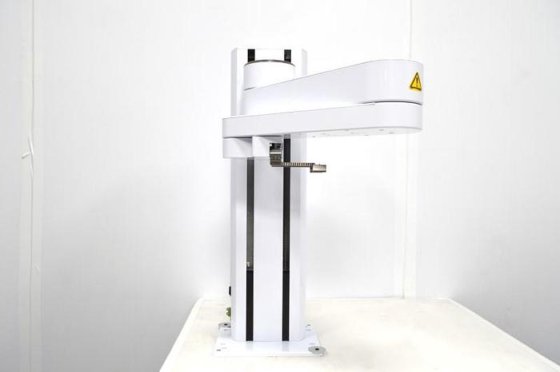

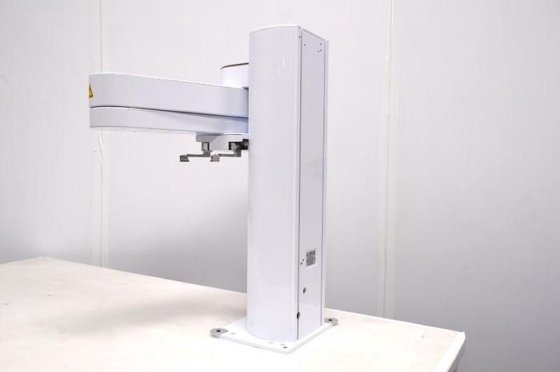

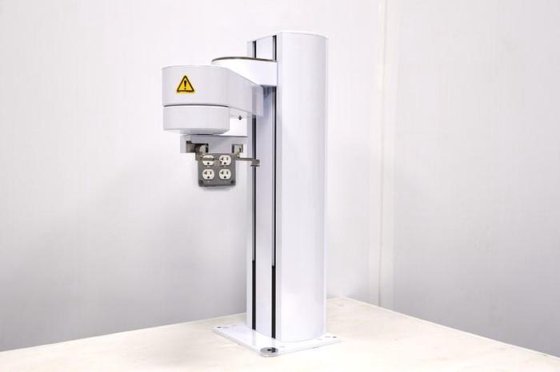

Brooks Precise Automation PreciseFlex 400 4-Axis Autosampler Robot Sample Handler in Walpole, MA, USA

- Good cosmetic condition
- Technical sales consultation available
- WARRANTY
---------------------------------------------------------------

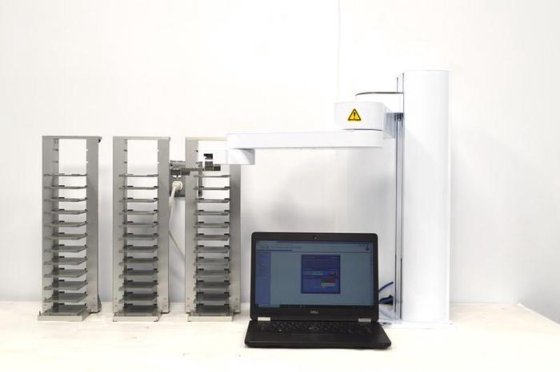

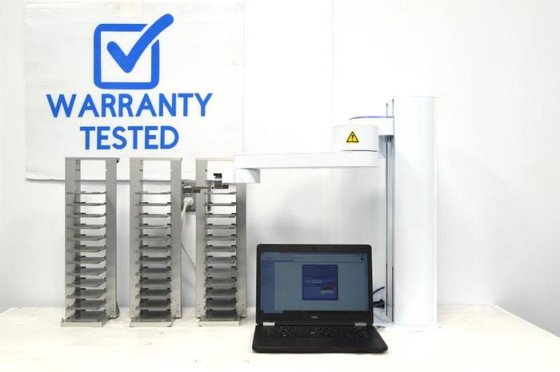

Here is what you will receive:

- Brooks PreciseFlex 400 System
- 12 Position Microplate Hotel (Qty: 3)
- Computer with Guidance Development Suite
- Power and Communication cables

Brooks PreciseFlex 400 Sample Handler Configuration:

- Range of motion & resolution:
- - J1 (Z) axis: 400mm
- - J2 axis: ± 90 degrees
- - J3 axis: ± 167 degrees
- - J4 axis: +/- 970 degrees

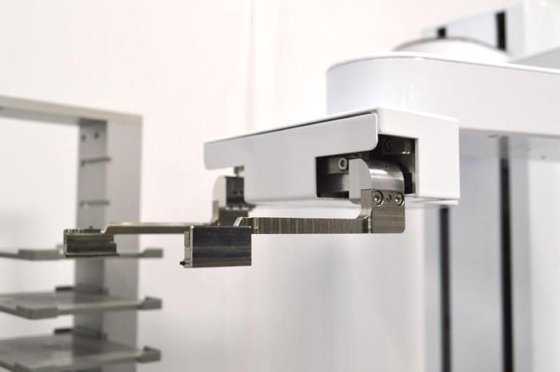

- Gripper travel: 74 to 133 mm
- Spring gripper force: 2-23 Newtons closing, 2-10 Newtons opening, 7 Newtons power off
- Resolution: 10 microns typical
- Repeatability: +/- 0.090 mm overall in x,y & z directions at 18-22C
- Maximum acceleration: 2500mm/sec2 with 500g payload
- Maximum speed: 500 mm/sec Cartesian, 360 degrees/sec J2, 720 degrees/sec J3, J4
- Labware: SBS plates can be selected in either landscape or portrait orientation.
- Weight: 20kg

Customization/Options: N/A

Testing performed by our in-house service team:

The PreciseFlex 400 Sample Handler passed all tests and was found to be fully functional:

- We performed an inspection of the electronics and powered the unit.
- We cleaned, inspected, and lubricated the mechanical components.

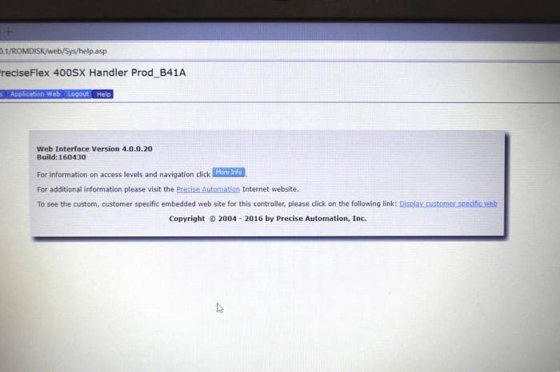

- We established communication with the Brooks PreciseFlex 400 Robotic Arm and verified the condition of the firmware.
- We initialized the system, confirming that all components were operational and ready for use.
- We completed the calibration of absolute encoders, ensuring accurate positioning and precise movement control of the robotic arm.
- We performed the plate transfer procedure, demonstrating the arm's capability to handle and transfer plates.

Instrument Overview:

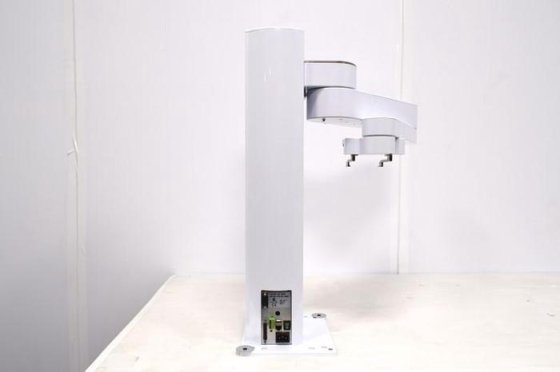

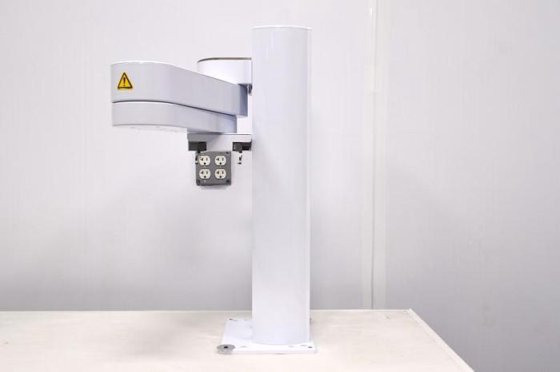

- Brooks Precise Automation PreciseFlex 400 Sample Handler is a collaborative SCARA robot designed for lab automation.
- Features a compact footprint and integrated controller, suitable for tight bench-top environments.
- Offers a 4-axis robotic arm with a 400 mm reach and high repeatability for small-volume handling.
- Built-in safety measures allow operation without traditional safety enclosures in many use cases.
- Can be equipped with various grippers or end-effectors for handling vials, plates, or tubes.
- The PreciseFlex 400 Sample Handler is widely used for improving throughput in routine lab workflows.

Instrument Application:

- Drug Discovery
- Genomics
- Agriculture
- Veterinary
- Bio Banking
- Laboratory sample handling
- Plate management for high-throughput screening
- Integration into biotech workflows
- Automated transfer between instruments

The Key Features:

- High workspace density
- Range of motion
- Handles a wide range of samples
- High throughput
- Save valuable floor space

Additional technical info:

- Brochure: PreciseFlex 400 Sample Handler Brochure
- Manual: PreciseFlex 400 Sample Handler Manual

WHY DO CUSTOMERS MAKING CRITICAL LAB PURCHASES CHOOSE TO ORDER SAMPLE HANDLERS FROM US?

They want to ensure all motion axes have been calibrated and tested for repeatability, accuracy, and backlash under load, preventing misalignment, sample crashes, or missed pickup events.

They want peace of mind knowing the system has been functionally tested with sample racks and verified under simulated workflow conditions.

They want to confirm that the absolute encoders have been calibrated to guarantee high-precision positioning and repeatable motion control, eliminating drift that can cause plate misalignment or dropped samples.

They want to ensure full system initialization and self-checks confirm every axis and safety interlock is operational, preventing unexpected crashes or motion faults during live sample handling.

They want to know that the boards have been tested for firmware issues and, if necessary, repaired before purchasing and installing them in their lab.

They want peace of mind, knowing their instrument is backed by a warranty from a company that can stand behind it.

Our Advantage

- We have experience servicing and repairing these instruments.
- This instrument goes through all the described service steps before shipping. see the questions section below
- We offer detailed photos and videos of the instruments you buy.
- We are an approved pre-owned equipment vendor to many large US, Canadian, and EU Universities.
- We are an approved pre-owned equipment vendor to many Fortune 500 US and International Biopharma companies.
- Technical sales consultation available
- On-site installation may be available in the Boston Area (New England area)
- US or International shipping is no problem (see the shipping tab on how we pack and feel at ease)

Our Guarantee

- Warranty
- You get after-sales technical support
- Customer references are available
- The instrument will be fully functional!
- Smooth process from the initial quote to order fulfillment

This will ship via freight. Please contact us with your zip code to obtain a shipping quote.
