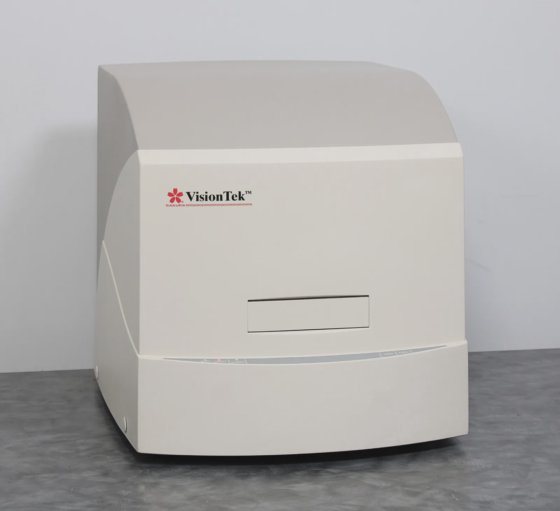

Sakura Finetek VisionTek DM01 Digital Microscope in Cridersville, OH, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Serial number
- 9999 0023-0312
- Stock number
- 9999
- Microscope type
- Digital Microscope
- Magnification range
- 2.5x, 10x, 20x, 40x
- Mpn
- 9999
- Viewer
- USB/Camera Output
- Intended use/discipline
- Biological Laboratory, Medical Laboratory, Microbiological Laboratory
- Product line
- VisionTek
- Optics
- EC Plan NeoFluar 2.5x/0.075 NA, 10x/0.3 NA, 20x/0.5 NA
- Magnification
- Overview image 0.45xHigh-resolution live magnifications: 2.5x, 10x, 20x, 40x
- Illumination
- Illumination white LED, with Köhler illumination; User illumination control
- Z-stage autofocus
- High-precision mechanical focus; motor controlled via mouse; Resolution 0.2 μm; IR beam and image-based autofocus mechanisms work together to focus automatically after each XY stage movement
- Xy-stage automation
- Automation XY stage accommodates 4 standard microscope slides on a slide carrier and controlled via mouse
- Slide loading
- Slide carrier accommodates up to 4 standard microscope slides
- Label/barcode
- 1D and 2D barcode recognition
- Image detection
- Overview camera resolution at 0.45x = 12 μm/pixelLive view and scanning camera resolution at 2.5x = 2.20 μm/pixel, at 10x = 0.550 μm/pixel, at 20x = 0.275 μm/pixel
- Scan speed
- 3.0 min. for 15 x 15 mm (at 0.275 μm/pixel)
- Power rating
- 100-240V, 50-60Hz, 4-2Amps
- Dimensions (w x d x h)
- 15.9 x 20.5 x 17.9 in (40.5 x 52 x 45.5 cm)
- Weight
- 77.2 lb (35 kg)
- Category
- Microscopes in USA
- Subcategory
- Healthcare, lab & dental
- Subcategory 2
- Medical & lab equipment, devices
- Listing ID
- 91991966
Description
“Untested Sakura Finetek VisionTek DM01 Digital Microscope, backed by 120-day warranty. Computer and software is not included and must be acquired separately.”
You Will Receive:
- Sakura Finetek VisionTek DM01 Digital Microscope (9999)
- Power cable
- 120-day warranty
Not Included:
- Computer and software
Untested and in Good Condition:
When powered on the LED labeled "POWER" lights amber. We attached a USB cable to a Windows 7 laptop and the port labeled USB camera and attempted to install drivers. Hardware ID was VID_1409&PID_1000, which is an IDS camera that we installed drivers for, but no control of the other device in the DM01.
