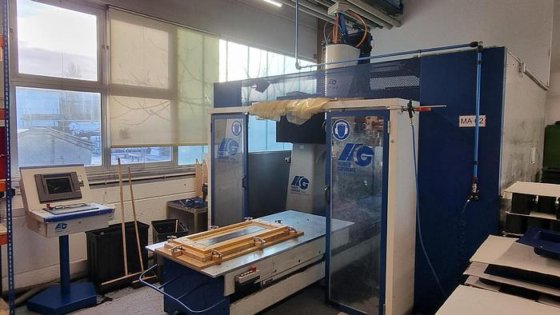

2001 Huber Grimme processing systems HG2000 in Denmark
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2001
- Subcategory
- Plastics processing machinery
- Listing ID
- 91083780
Description
Manufacturer: Huber & Grimme processing systems
Model: Portal milling machine HG2000 with 12-fold tool change
• Travel distances: X=3000 mm, Y=1600 mm, Z=-900 mm, A=-180°, +360°, B= +/-110°
• Installation dimensions: approx. 6,200 x 4,000 x 3,530 mm (L x W x H)
• Cube dimensions: approx. 2,500 x 1,000 x 650 mm
• Table size: 2,150 x 1,000 mm, with 3 vacuum connections at a distance of 805 mm
• Spindle Z80-K440.54 S4W1IP, 2.6 KW, WK19, 36000rpm (replaced September 2022)
with cooling unit
• NUM control with RTCP
• Teach-in box with handwheel
• Blown air at the cutter tip
• Central lubrication (new unit 2022)
• 100 cbm/h BUSCH vacuum pump with chip pre-filter
• Cabin extended by 500 mm due to safety regulations (distance to milling head)
• Technical documents and operating instructions
• The machine is still in full use and will be available from the end of January 2024.
