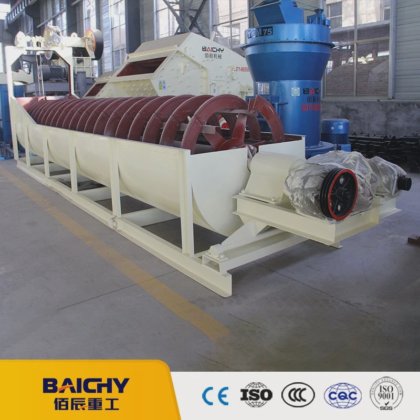

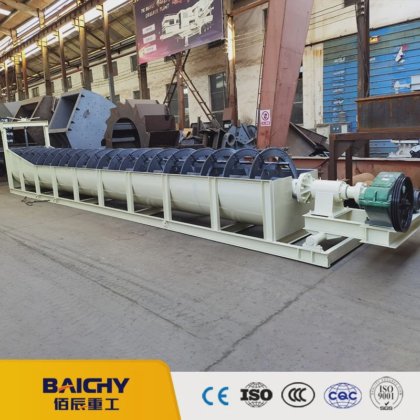

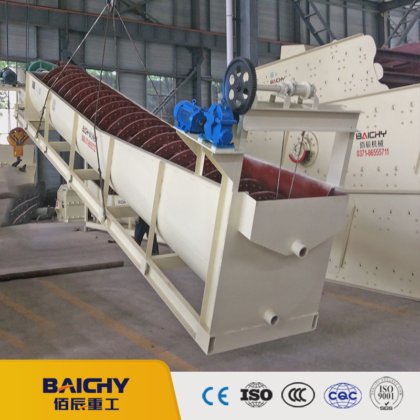

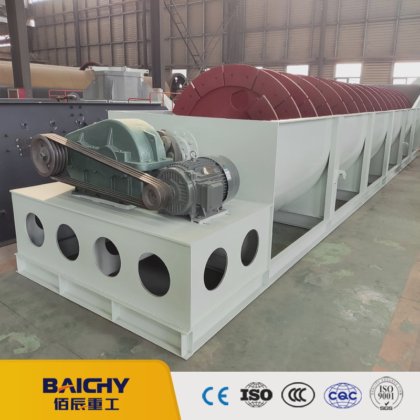

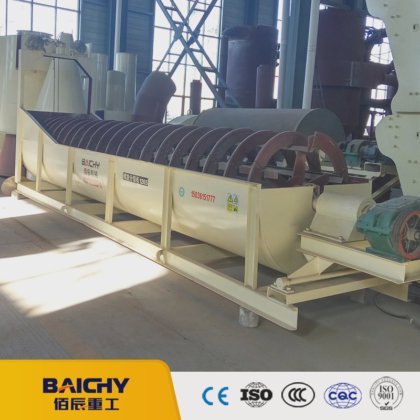

Single Spiral Classifier Machine for Gold Mining, Multi-Functional Classifier Machine, Fg1500 Spiral Screw Classifier Supplier in Henan, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Voltage
- 380V
- Shipping cost
- Contact the supplier about freight and estimated delivery time.
- Secure payments
- Every payment you make on is protected by the platform.
- Refund policy
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
- Weight
- 2T
- Material
- Carbon Steel
- Material feature
- Fire Resistant
- Certification
- ISO9001:2008, ISO9001:2000, CE
- Energy saving
- Energy Saving
- Customized
- Customized
- After-sales service
- Long Service Life
- Applicable industries
- Energy & Mining
- Video outgoing-inspection
- Provided
- Machinery test report
- Provided
- Screw diameter (mm)
- 750, 1000, 1200, 1500, 1800
- Tank length (mm)
- 6500, 8400, 8300, 10500, 12900
- Screw quantity
- 1 PCS
- Max.feeding size (mm)
- 0.03-0.3mm
- Water consumption (t/h)
- 10-80 Tph
- Spare parts of spiral classifier
- Supply The Whole Using Life
- Factory visit
- Welcome
- Application
- Ore Beneficiation Plant
- Mine density
- 30-50%
- Pitch of screw
- 540/360
- Number of threads
- 2-3
- Number of turns
- 4-5
- Transport package
- Standard Container
- Specification
- According to model
- Hs code
- 8474209000
- Production capacity
- 50 Set / Month
- Category
- Mineral Processing in China
- Subcategory
- Mining machinery
- Subcategory 2
- Mineral separator
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 90460633
Description
Single Spiral Classifier Machine For Gold Mining, Multi-Functional Classifier Machine, FG1500 Spiral Screw Classifier Supplier
Spiral chute is one of the gravity concentrators, which separate minerals of different specific gravity according to their relative movement in response to gravity, centrifugal force and other forces in the fluid medium. The Nile Spiral Chute is a combination of spiral concentrator, spiral chute, shaker, centrifugal separator features of the equipment, is the best equipment for mining and mineral processing. Especially the seashore, Riverside, Sand Beach, Stream Road placer mining is more ideal.
＞＞＞ Sprial classifier application
Spiral classifier is widely used in ore dressing plant, gravity concentrator to grade ore and metal, and to carry out particle size classification of pulp, desliming and dewatering operations.
1.Suitable for distributing ore in concentrator with ball mill in closed-circuit circulation.
