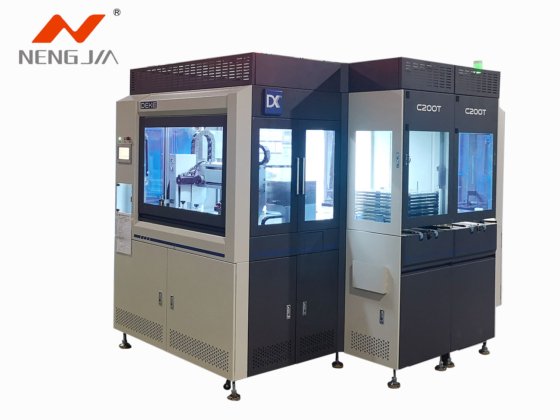

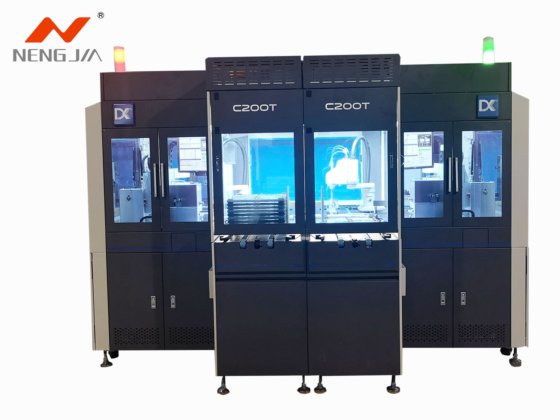

CCD high-precision alignment and high-efficiency rotary screen printing machine in Shenzhen, Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Name (of a thing)
- CCD high-precision alignment and high-efficiency rotary screen printing machine
- Model
- DK-C200T
- Applications
- Touch panel cover, electronic window glass
- Print thickness (mm)
- 0.2-2
- Combined accuracy (mm)
- ±0.01
- Height of upper conveyor belt (mm)
- 960+40
- Turntable positioning accuracy
- 5μm
- Gas source pressure (mpa)
- 0.4-0.6
- Capacity/h(pcs)
- 1500 (actual capacity varies according to printing process)
- Maximum printing area (l*w*h mm)
- 4 inches - 6 inches
- Upstream and downstream communications
- I/O Contacts
- Number of ccd lenses
- 6 groups
- The loading machine is suitable for tray discs
- 480*365-480*385
- Alignment integration accuracy
- ≤ 20μm
- Power (kw)
- 5.5
- Dimension of the whole machine (l*w*h mm)
- w1859 x d1480 x h2107
- Category
- Screen Printing in China
- Subcategory
- Industrial automation equipment
- Listing ID
- 89236414
Description
Specification Sheet:
