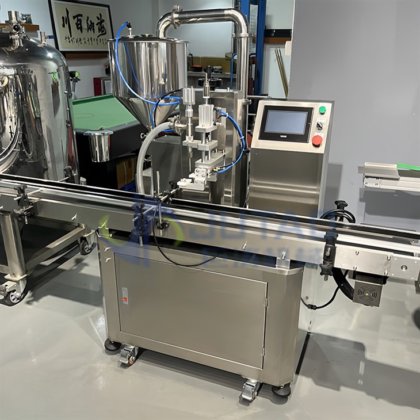

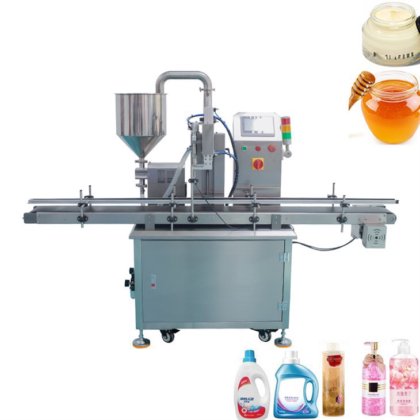

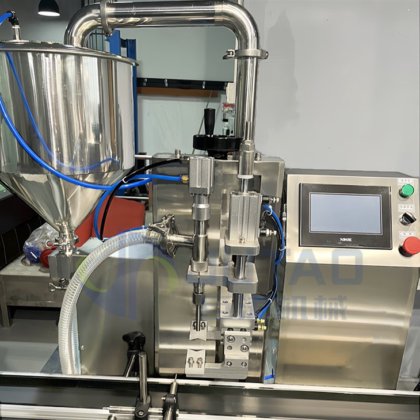

Tomato Paste Filling Machine in Guangzhou, Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Number of filling heads
- single head
- Filling volume
- 5-5000ml
- Applicable bottle height
- 30mm-220mm
- Applicable bottle diameter
- 10mm-180mm
- Production capacity
- 0-60 bottles/min
- Filling accuracy
- ±0.5%
- Air supply
- 0.6-0.8Mpa
- Category
- Packaging Machinery in China
- Subcategory
- Package machine
- Subcategory 2
- Filling machine
- Listing ID
- 89185378
Description
It adopts servo piston cylinder filling and PLC motor controlled conveying. The smooth conveying ensures the precise alignment of the filling head and the bottle mouth, and is easy to adjust and maintain. It has a wide range of filling materials and is suitable for filling pastes, liquids and viscous materials. It is widely used in daily chemical, food, beverage and other industries.
Made of all 304 stainless steel, the product is simpler and more convenient in terms of operation, accuracy error, loading adjustment, equipment cleaning, maintenance, etc. The fully pneumatic filling machine designed on this basis uses pneumatic components to replace the electrical control circuit, so it is particularly suitable for use in environments with explosion-proof requirements. Liquid (water, wine, etc.
