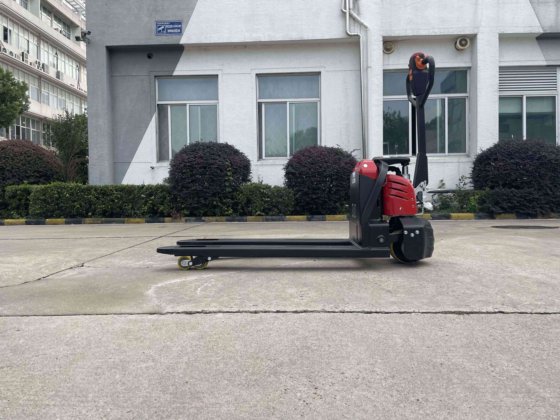

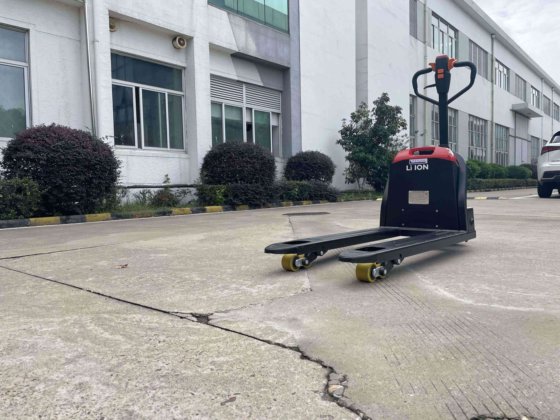

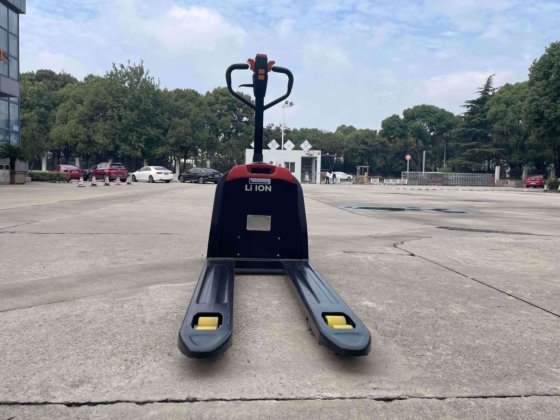

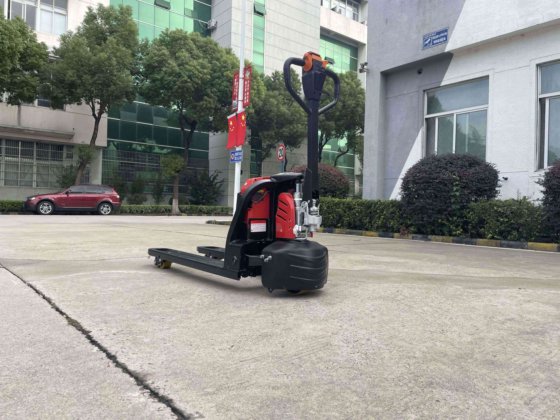

CBD15LI-CBD20L in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Load capacity
- Q(kg); 1500; 2000
- Load center distance
- c(mm); 600
- Lowered fork height
- h13(mm); 85/75
- Wheel base
- y(mm); 1287
- Tyre model
- ; PU wheels
- Max. lift height
- h3(mm); 200/190
- Overall length
- l1(mm); 1644
- Fork dimensions
- s/e/l(mm); 53/160/1150
- Width overall
- b5(mm); 685
- Aisle width for pallets 1000x1200 cross ways
- Ast(mm); 1844
- Aisle width for pallets 800x1200 length ways
- Ast(mm); 1894
- Turning radius
- Wa(mm); 1475
- Travel speed,laden/unladen
- Km/h; 5.3/5.8
- Max.grade ability,laden/unladen
- %; 5/15
- Battery voltage,nominal capacity k10
- V/Ah; 24V/20Ah/48V/20AH
- Battery weight
- kg; 45
- Service weight (with battery)
- kg; 205
- Category
- Pallet Trucks in China
- Subcategory
- Full electric pallet truck
- Subcategory 2
- Indoor warehouse equipments
- Subcategory 3
- 1.5 ton -2 ton lithium battery pallet truck
- Listing ID
- 86897450
Description
Compact design with medium duty operation with load capacity of 1500 kg to 2000 kg, stable and economic, easy to move in confined spaces such as retail stores, small warehouses and factories
Handler designed according to ergonomic principles, easy to operate from either side
Turtle speed function applied to move slowly and helps to stack goods in narrow spaces
7.9" American style battery cover, applying to 7.5" battery or any smaller industrial battery
With battery indicator, key switch and emergency off button
Optional operator`s platform is highly advantageous for large warehouses and long distance transport tasks, foldable armrests offer additional safety and comfort for operator
With Lithium battery, fast charging
AC driving motor applied to provide excellent acceleration, good gradeability, low heat, no carbon brush and maintenance free
