Wet Drum Magnetic Separator for Metal Mine, Wet Type Mineral Processing Magnetic Drum Separator in Henan, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Voltage
- 380V
- Shipping cost
- Contact the supplier about freight and estimated delivery time.
- Secure payments
- Every payment you make on is protected by the platform.
- Refund policy
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
- Weight
- 3500 - 16250 Kgs
- Material
- Carbon Steel
- Material feature
- Heat Resistant
- Certification
- ISO9001:2008, ISO9001:2000, CE
- Energy saving
- Energy Saving
- Customized
- Customized
- After-sales service
- Long Service Life
- Applicable industries
- Manufacturing Plant, Construction Works , Energy &
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Core components
- Magnet System
- Key selling points
- Low Noise Level
- Magnetic field intensity
- 1500OE
- Installation
- Under Guidance
- Subcategory
- Mining Machinery
- Category
- Recycling & Disposal in China
- Factory visit
- Welcome
- Magnetic intensity on the drum surface
- Customized or Make as Per The Specific Mineral
- Application
- Preseparate The Lean/Low-Grade Ore with Only 5-20%
- Feed-in size
- 0-16mm
- Drum rotary speed
- 0 - 50 R/Min
- Transport package
- Standard Container
- Specification
- According to model
- Hs code
- 8474100000
- Production capacity
- 30 Set / Month, 90% Recovery Rate
- Category
- Recycling & Disposal in China
- Subcategory
- Mining machinery
- Subcategory 2
- Mineral separator
- Subcategory 3
- Manufacturing & processing machinery
- Subcategory 4
- Magnetic separator mineral separator
- Listing ID
- 86693375
Description
Wet drum magnetic separator for metal mine, wet type mineral processing magnetic drum separator
Product Description
Dry magnetic separator is mainly used for separating large and coarse-grained strong magnetic ores and fine-grained weak magnetic ores in the air. Compared with the wet drum magnetic separator, which uses liquid as a diluent to improve the separation efficiency, the dry magnetic separator requires the sorted minerals are dry, and the particles can move freely and form an independent free state.Otherwise it will affect the magnetic separation effect. Dry magnetic separator is suitable for refractory materials, chemical materials, grain and oil machinery, abrasive, ceramics, metallurgy, cement, powder metallurgy, rubber, ore and other materials in addition to (select) iron use, and can be used with Raymond mill, pulverizer, ball mill.
Magnetic separator features
1. Adopt the multi-magnetic pole arrangement with short distances between poles in the internal magnetic system, which can increase the stirring of the magnetic particles and remove the gangues from minerals.
2. 180° broad-angle magnetic system can effectively prolong the separation area, and improve the recovery of iron ores.
3. Wear-resistant ceramics are stuck on the drum surface, the hardness HRA is ≥85, maximum HRA92 over
4. Simple material distribution device, which can conveniently control the grade of the concentrate and the tailing.
Working principle of magnetic separator
When materials go through the permanent magnetic drum, the magnetic particles are absorbed to the drum surface and discharged through the magnetic product area. Meanwhile, the non-magnetic particles are ejected from the drum surface under the influence of the centrifugal force and gravitation and discharged through the non-magnetic product area.
Product Parameters
Model
GYC-60B
GYC-60B-1
GYXY-2X60
GYXY-3X60
GYXY-3X80
GYXY-4X80
Cylinder dia*length(mm)
Φ320x600
Φ320x600
Φ320x600
Φ320x600
Φ404x800
Φ404x800
Magnetic induction(oe)
3600
1100
3500
1100-3000-3500
Cylinder quantity (per)
1
1
2
3
3
4
Cylinder Speed (r/min)
66,47,33
34.5-172 (Adjustable)
54.6-172 (Adjustable)
64.5-172 (Adjustable)
Input size (mm)
0.06-25
0.063-25
0.05-25
0-8
Motor model
Y801-4
Y901-4
Y801-4
ZBW-15
Overall dimension (mm)
860x550x840
860x550x840
1150x920x1500
1050x1025x1700
1770x1260x2400
2300x1000x2750
Capacity (t/h)
0.5-2.5
0.1-3
0.5-2.5
0.8-2.5
1.5-2.5
1.5-2.5
Applcation socpe and introduction
Select
Select
Select
Shawing supplar
Shawing supplar
Select

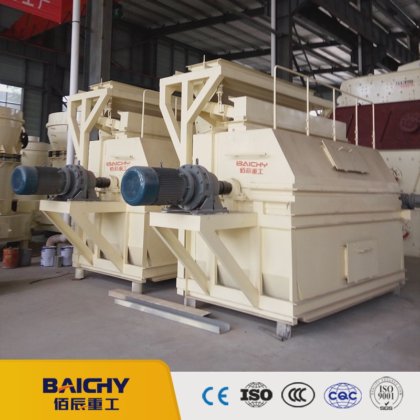

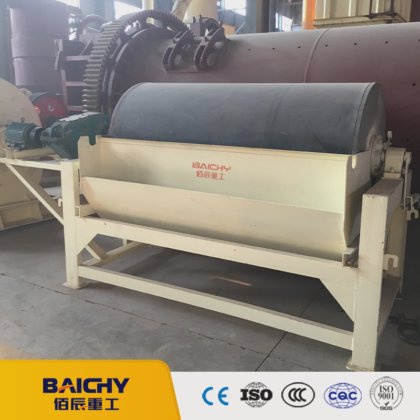

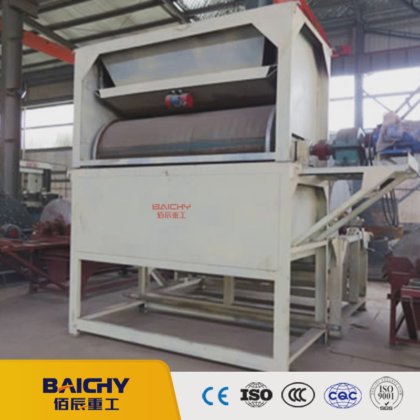

Detailed Photos
Baichy Heavy Industrial Machinery Co., Ltd. is a hi-tech, engineering group. We are specialized in the research, development, and production of stone crushing, powder grinding, mineral processing equipments and other related devices. Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future.
Baichy Factory
Headquarter of Baichy is located in Zhengzhou city, China and now we have two manufacturing bases as our strong support. One is located in Jiaozuo about 200,000 square meters, and the other is in Xingyang city, about 100,000 square meters.There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment.
After Sales Service
Pre-sale services:
(1) Advice of model choice.
(2) Design and manufacture machines according to customer's special requirements
(3) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design thebest processes and program
After-sale services :
(1) Arrange technicians to go to the site to guide installation
(2) If your machine is out of warranty period, Baichy could provide the spare parts.
(3) Complete sets of equipment installed, Baichy could arrange technical staff on-site for install, dubug and training until the user' satisfaction.
