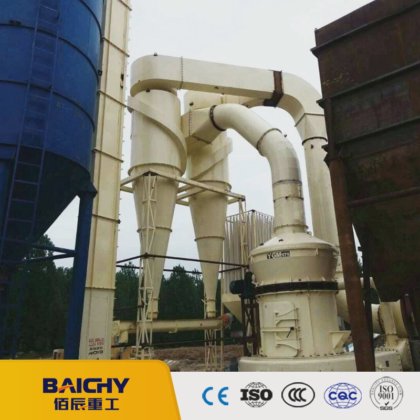

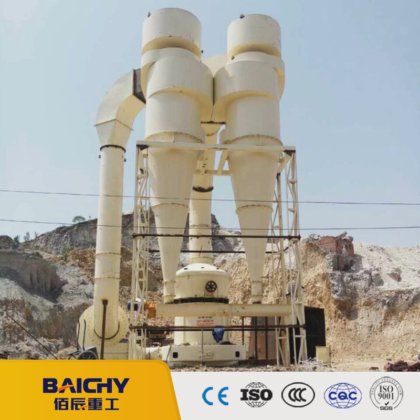

High Efficiency Mineral Separator / Powder Concentrator / Air Classifier with Cyclone in Henan, China

Product Parameters
Model
S400
S500
S600
S700
S900
S1000
S1100
S1200
Matched mill (m)
Φ1.5
Φ1.83
Φ2.2
Φ2.4
Φ3.0
Motor Blower
Model
YCTL200-4A
YCTL200-4B
YCTL200-4A
YCTL200-4B
YCTL200-4B
YCTL200-4A
YCTL200-4A
YCTL200-4B
Rotating speed(r/min)
125-1250
132-1320
440-1340
440-1340
600-1340
Power (KW)
7.5
11
15
18.5
37
55
75
90
Model
SCF-12NO.8C
SCF-12NO.8C
SCF-12NO.10C
SCF-12NO.12C
SCF-12NO.12C
SCF-12NO.16B
SCF-12NO.16D
SCF-12NO.12C
Volume
24216
30900
37960
58200
119332
168000
192000
211000
Air pressure
2.18
2.43
2.34
2.07
2.26
2.70
2.70
2.60
Rotating speed(r/min)
1500
1600
1200
1000
800
960
960
710
Model
Y180M-2
Y200L1-2
Y225S-4
Y225M-4
Y335M1-8
Y335M1-6
Y335M3-6
Y335L-8
Power (KW)
22
30
37
55
132
160
200
220
Rotating speed of shaft (r/min)
190-380
190-380
150-350
150-350
140-350
100-300
Application
Air classifier is mainly used for raw meal clinker classifying and setting up close-circuit grinding system with ball mill. It is widely used in powder process,
cement, chemical, metallurgical and other industries.
Working principle
Airflow classifier and cyclone separator, dust catcher, induced draft fan, a classification system.Material under the action of a draught fan by the classifier high speed movement to bottom into the mouth with the increased flow classification, rotating at high speed the classification of turbine under the action of the strong centrifugal force, the thickness of material separation, conform to the requirements of the particle size of the fine particles, through the classification of blade clearance into cyclone separator or dust collection, coarse sinking under the effect of gravity and centrifugal force, by rotor blade into the cylinder and the cylinder around fall, in the process of land and secondary blast shock, reunion in the coarse grain powder scattered and once again blow to the classifying chamber, coarse powder under the action of gravity by bottom discharge valve discharge.
Company Profile
Baichy headquarters is located in the industrial park in Jiaozuo City. It covers a total area of 200,000 square meters, including 150,000 square meters of standardized workshops. There are more than 200 sets of various large and medium-sized metal processing lathes, riveting machines, welding equipment, and assembly equipment. We have more than 500 workers, including more than 20 middle and senior technicians. Baichy is mainly focused on 4 series of products: stone crusher machines, sand-making equipment, powder grinding mills, mineral processing equipment, and their spare parts. Every year, Baichy can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
Through the international mining machinery exhibitions, We have demonstrated our professional equipment, technology, and thoughtful service to customers from all over the world.
FAQ
1. Are you a manufacturing or trading company?
We are a factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at the lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already built many mining projects in China & Overseas.
