LC-350/560 CCD Screen Printer Servo Motor Control Auto Color Register Printing Machine in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- 12 Months
- Style
- Screen-process Printing Press
- Structure
- Stop-cylinder Press
- Color & page
- Multi-Colour Printing Press
- Application
- Packaging Printing
- Printing thickness
- 5mm
- Precision
- ±0.02mm
- Printing speed
- 500times/Hour
- Dimension
- 4500X1550X2200mm
- Transport package
- Wooden Case
- Specification
- 1500kg
- Category
- Electric Motors in China
- Subcategory
- Screen printer
- Subcategory 2
- Printing machinery
- Subcategory 3
- Packaging & printing
- Listing ID
- 86578906
Description
Product Description

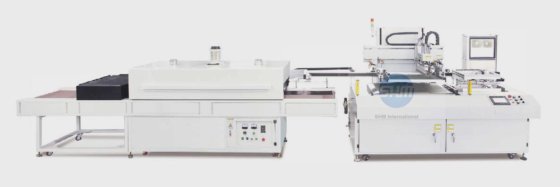

LC-7120DZSP CCD Registering Screen Printing Machine ( Sheet Feeding )
1.Mechanical automatic high precision screen printing machine, Robot arm loading and unloading, accurate within ±0.08mm, superior performance, production yield greatly improved.
2.Machine structure, strong, light weight, imported servo and transmission motor plus precision steering positioning, stable operation, quiet and more smooth and fast.
3.The printing table is made of cast aluminum, with the flatness of ±0.1mm and the uniformity of printing film thickness.
4.Machine printing stand casting column and precision linear guide rail synchronous locking device design, ensure printing film thickness uniformity.
5.Servo motor screen lift and traditional printing with high precision digital constant pressure printing head, so that the printing can fully display the constant pressure effect.
6.Auto loading and take off material,Directly improve productivity and quality yield.
