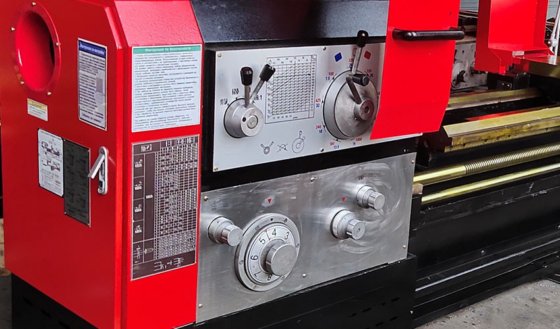

Horizontal Lathe Machine CW6263 in Tianjin, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Max.swing over bed
- 630mm
- Center height
- 315mm
- Max.swing diameter over cross slide
- 350mm
- Max swing over gap
- 800mm (CW6263)
- Width of guide rail
- 550mm
- Max load capacity
- 2000KG
- Maximum length of work piece
- 1500mm-20000mm
- Spindle hole
- 104mm
- Spindle taper
- ¢ 120mm Taper1:20
- Spindle speeds
- 18kinds; 7.5-1000r/min
- Metric threads mm
- 1-240mm (50 kinds)
- Inch threads tpi
- 14-1 (26 kinds )
- Module threads mm
- 0.5-120mm (53 kinds )
- Diametric threads dp
- 28-1 (24kinds )
- Steps and range of longitudinal feeds range
- 64kinds; 0.05-24.3mm/r
- Range 1:1
- 0.1-1.52r/min
- Range 16:1
- 1.6-24.3mm/r
- Cross feed range
- 0.05-12.15mm/r
- Range of micro feed with change gear
- 0.05-0.912mm/r
- Longitudinal and cross feed rate
- 1/2
- Rapid move speed of carriage
- 4000mm/min
- Max. travel of lower slide
- 420mm
- Max. travel of upper sllide
- 200mm
- Sleeve travel
- 250mm
- Sleeve taper
- MT6#
- Main motor power
- 11kw
- Rapid move motor power
- 1.1kw
- Power of coolant pump motor
- 90w
- Category
- Lathes in China
- Subcategory
- Lathe products
- Subcategory 2
- Horizontal lathe machine
- Subcategory 3
- 2t load capacity series lathe
- Listing ID
- 86393641
Description
Favourable Price
Stable Quality & Fast Delivery
Horizontal Lathe Machine CW6263
1. The machine tool power, strong rigidity, spindle speed range is wide, suitable for strong or high speed cutting.Of spindle brake and shift to the hydraulic control, sensitive and reliable braking available button without a stop conversion speed, the forced lubrication with pressure oil in the cabinet of the head of a bed, spindle speed range has several kinds, for user to choose from.
2. Sliding box has a fast moving structure, single handle visualization operation;Spindle and reversing shift to the brake and the user can choose the hydraulic control or manual control machinery.
3. The machine tool rest with single motor turning cylinder, you can also use the tool rest and longitudinal feed turning cone length.The machine it is suitable for large and medium-sized of steel and non-ferrous metal parts processing, can be cylindrical turning, inner hole, face cutting, drilling, boring and nesting.
