DH-CF Foam Repeated Compression Testing Machine, Sponge Compression test machine in Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Certification
- CE, FCC
- Compression stroke
- 0~50mm
- Compression rate
- 60cpm
- Power supply
- AC220V
- After-sale service provided
- Yes
- Testing before delivery
- Yes
- Oem service
- Yes
- Transport package
- Carton Packing
- Specification
- 60 × 40 × 75cm
- Hs code
- 9027809900
- Production capacity
- 300 Sets/Month
- Category
- Materials Testing in China
- Subcategory
- Instruments & meters
- Subcategory 2
- Physical measuring meter
- Subcategory 3
- Viscometer, density meter
- Listing ID
- 86057894
Description

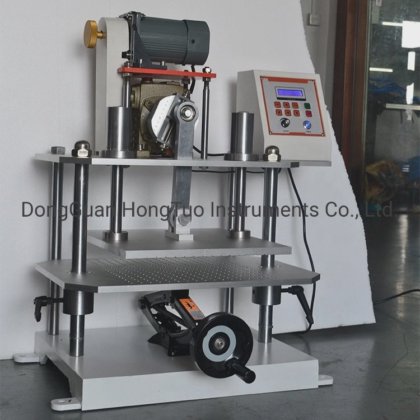

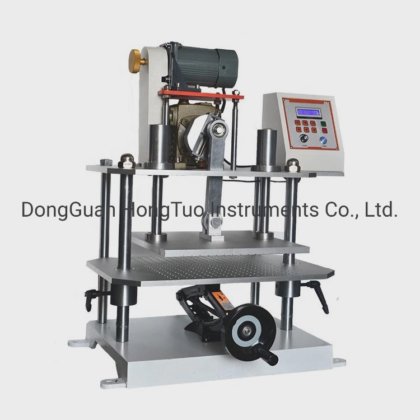

DH-CF Foam Repeated Compression Testing Machine, Sponge Compression test machine
Application
After
accurately measure the thickness of the test piece, then place it in the compression plate of the testing machine, compressing the test piece 60 times at a rate of 60 times per minute, compressing the test piece by 50%,
the
reciprocating compression is up to 80,000 times, and after 30 minutes at normal temperature, the thickness is measured to convert the compression deformation rate.
S
tandard
ISO-7214, JIS-K6767, K6382
Technical Parameters
Compression stroke: 0~50mm
Compression rate: 60cpm
Platen spacing: 200mm
Test piece size: 200 × 200mm
Platen area: 30×30cm
Upper pressure plate: V-type exhaust groove distance: 19 × 19mm
Lower pressure plate: 289 venting holes, hole spacing: 19mm
Motor: 1/3HP
Counter: LCD, 0~999999
Volume: 60 × 40 × 75cm
Weight: 102kg
Power supply: 1∮AC220, 5A
