Laminate PU Paper Machine with Frequency Control in Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- One Year
- Classification
- Cold Laminating Machine
- Application
- Particle Board, Fiberboard, Plywood, Aluminium Plate, Film Material, Soft Board
- Driven type
- Electric
- Automatic grade
- Automatic
- Membrane material
- Paper,PVC Film
- Plastic film mulching modes
- Cold Laminating
- Performance
- Anti Wrinkle
- Net weight
- 2800kgs
- Glue type
- Solvent Glue, Water Base White Glue
- Based panel
- MDF,Plywood Particle Board Aluminum Panel,etc
- Working speed
- 1-15m/Min
- Transport package
- High Quality PE Film
- Specification
- 9600*2300*1600mm
- Hs code
- 8477409000
- Production capacity
- 150set/Year
- Category
- Papermaking in China
- Subcategory
- Packing machinery
- Subcategory 2
- Laminating machine
- Subcategory 3
- Packaging & printing
- Subcategory 4
- Cold laminating machine
- Listing ID
- 85933429
Description
Product Description

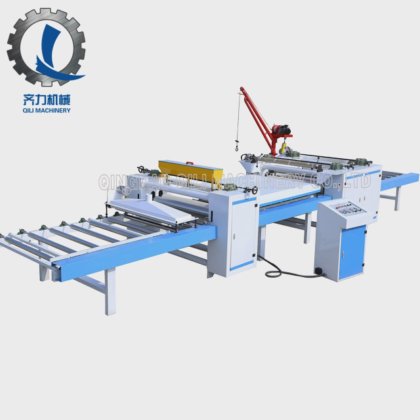

aluminum/Plywood/MDF panel PVC film sticking laminating machine
This type machine is the best choice for laminate decorative material (PVC,PE, wood grain paper etc.)on the surface of the flat board(MDF board,density board, particle board, aluminum panel,steel panel,PVC panel equipped with dust-cleaning part, glue coating machine,glue heating part, cold and hot pressure part,can finish dust-cleaning, glue coating, hot & cold pressure, material sticking.The final product has a flat surface without wrinkles
Technical parameters
aluminum/Plywood/MDF panel PVC film sticking laminating machine
Item
QL1350TZ-D
Pressing roller control
Automatic(when change thickness of the panel,the pressing roller can lifting automatic)
Main body of the machine
Made by 16mm steel plate
Voltage
380V/50HZ
Rated power
18KW
Glue coating roller
φ190x1350mm( silicone )
Heating steel Pressing roller
φ190x1350mmx3PCS
Rubber pressing roller
$11,500 USD
