Woodworking Machine Three Line Multiple Drilling Machine in Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Structure
- Horizontal Drilling Machine
- Layout
- Horizontal
- Controlling mode
- CNC
- Number of shaft
- 5
- Hole diameter
- <50mm
- Automatic grade
- Semiautomatic
- Precision
- High Precision
- Certification
- CE, ISO 9001
- Maximum diamenter of holes
- 35mm
- Depth of drilled holes
- 0-60mm
- The number of spindles
- 63
- Center distance between spindles
- 32mm
- Rotation of spindle
- 2840r/Min
- Total motor power
- 4.5kw
- Suitable voltage
- ~380V
- Air pressure
- 0.5-0.8MPa
- Overall size
- 2600*2600*1600mm
- Packing size
- 2700*1350*1650mm
- Transport package
- Wooden Case
- Specification
- 2.4CBM
- Hs code
- 84659500
- Production capacity
- 500sets/Year
- Category
- Drilling Tools in China
- Subcategory
- Machine tools
- Subcategory 2
- Drilling machine
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 85901511
Description

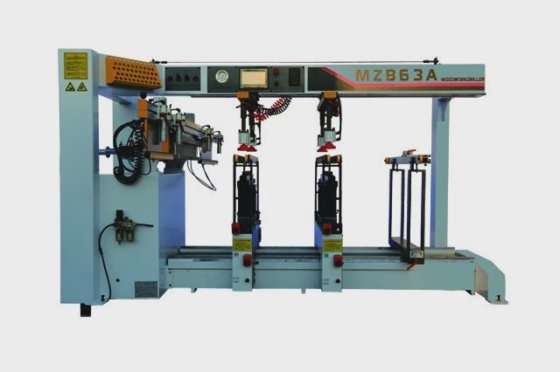

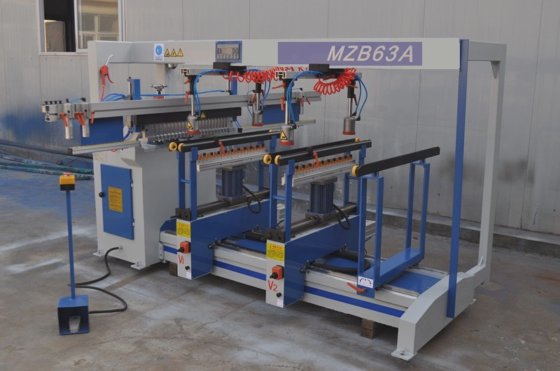

MZB63A Three-Row Multiple Drilling Machine for woodworking
Technical Specification:
Max. diameter of holes
35 mm
Depth of drilled holes
0-60 mm
The number of spindles
63
Center distance between spindles
32 mm
Rotation of spindle
2840 r/min
Total motor size
4.5 kw
Suitable voltage
380 v
Air pressure
0.5-0.8 Mpa
Gas consumption for drilling ten panels per minutes approximately
20L/min Approximately
Max. distance of the two longitudinal heads
1850 mm
Height of working platform off the ground
800 mm
Over size
2600x2600x1600 mm
Packing size
2700x1350x1650 mm
Weight
1260 kg

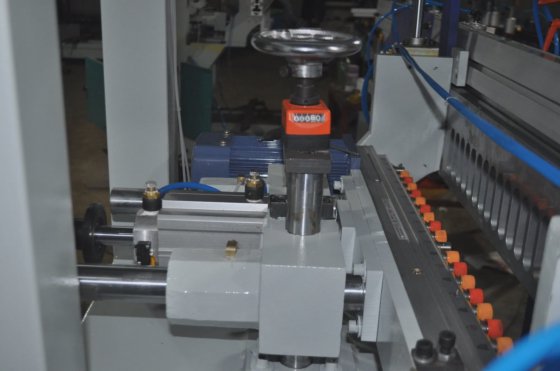

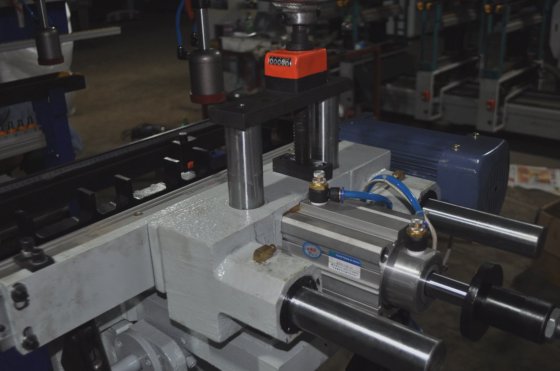

Product Details:
Certificate:
Our Services:
(1) Pre-sale services:
* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
* According to the clients' special requirement, offering the reasonable plan and free design helping to
select the equipment.
