Double-Row Multiple Drilling Machine for Woodworking in Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Structure
- Horizontal Drilling Machine
- Layout
- Horizontal
- Controlling mode
- CNC
- Number of shaft
- 5
- Hole diameter
- <50mm
- Automatic grade
- Semiautomatic
- Precision
- High Precision
- Certification
- CE, ISO 9001
- Maximum diamenter of holes
- 35mm
- Depth of drilled holes
- 0-60mm
- The number of spindles
- 42
- Center distance between spindles
- 32mm
- Maximum dimensions of piece
- 2500*920*70mm
- Rotation of spindle
- 2840r/Min
- Total motor power
- 3.0kw
- Suitable voltage
- ~380V
- Air pressure
- 0.5-0.8MPa
- Overall size
- 1900*2600*1600mm
- Transport package
- Wooden Case
- Specification
- 2.4CBM
- Hs code
- 84659500
- Production capacity
- 500sets/Year
- Category
- Drilling Tools in China
- Subcategory
- Machine tools
- Subcategory 2
- Drilling machine
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 85901488
Description

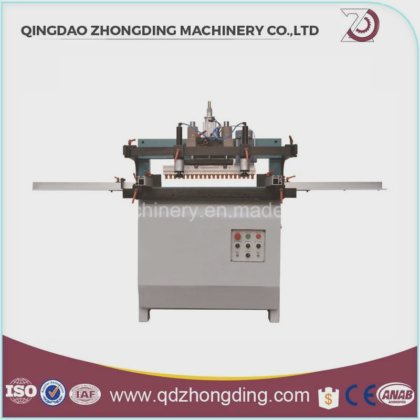

MZ73212A Double-Row Multiple Drilling Machine for woodworking
Technical Specification:
Max. diameter of holes
35 mm
Depth of drilled holes
0-60 mm
The number of spindles
21*2
Center distance between spindles
32 mm
Rotation of spindle
2840 r/min
Max dimensions of piece to be drilled
2500*920*70 mm
Total power
3 kw
Air pressure
0.5-0.8 Mpa
Gas consumption of drilling 10 panels per minute
10L/min approximately
Suitable voltage
~380 V
Max distance of the two longitudinal heads
380 mm
Min distance of the two longitudinal heads
0 mm
Height of working plat form off ground
900 mm
Weight of the whole machine
680 kg
Over size
1900*2600*1600 mm
Packing size
1100*1300*1700 mm

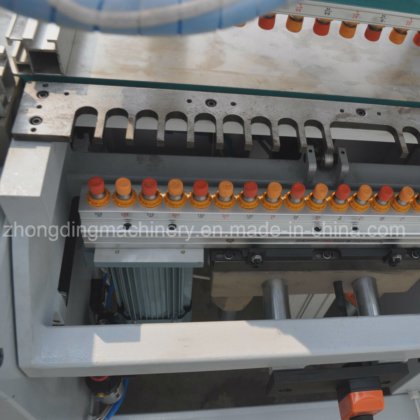

Product Details:
Certificate:
Our Services:
(1) Pre-sale services:
* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
