High Speed Automatic Robot Palletizer System Carton Bag Palletizing Machine Automatic Packing Palletizing Machine in Chongqing, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Name
- High Speed Automatic Robot Palletizer System /Bag
- Capacity
- 500bags/Hour
- Shipping cost
- Contact the supplier about freight and estimated delivery time.
- Secure payments
- Every payment you make on is protected by the platform.
- Refund policy
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
- Power
- 5kw
- The layer number of pallet
- 1-12 Layers
- Voltage
- Customized
- Muscle size
- >31kg
- Certification
- CE
- Control mode
- Continuous Path Control
- Drive mode
- Electric
- Application
- Welding, Load, Forging
- Transport package
- Wooden Case
- Specification
- CE
- Hs code
- 8428909090
- Production capacity
- 50 Sets/ Month
- Category
- Palletizers in China
- Subcategory
- Manipulator
- Subcategory 2
- Electric manipulator
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 84660052
Description

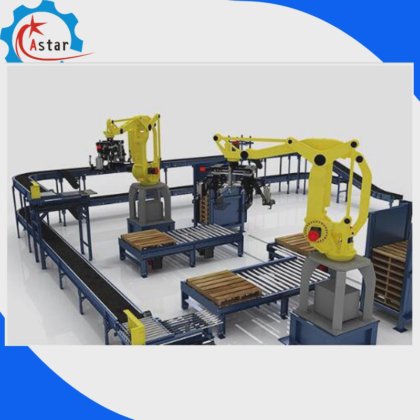

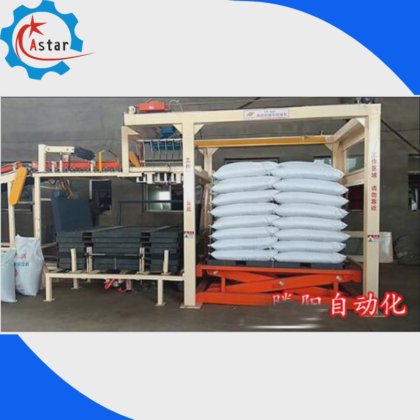

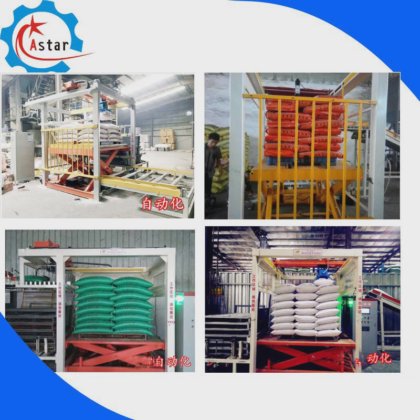

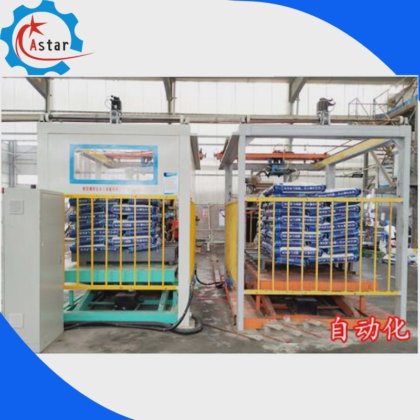

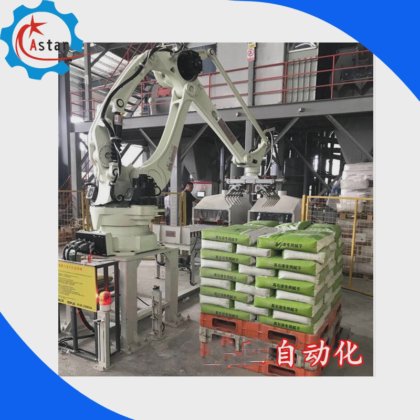

High Speed Automatic Robot Palletizer System /Bag Palletizing Machine Description:
High Speed Automatic Robot Palletizer System /Bag Palletizing Machine is widely use in many area, such as feed factory, wood pellet factory, cement factory , and any factory need palletizing .
it is simple structure with easy operation manual .
Save Labor, and low investment .
Model:
TY-500
Capacity:
500
bags
/H
Voltage:
380V 50HZ
Power
5KW
Machine Dimension:
L2400mm×W2000mm×H3000mm
The layer number of pallet
1-12
layers
Air supply pressure:
0.6-1.0Mpa
Weight :
2000Kg
Consist as below :
NO
Name
Remarks
Specification
Qty
1
Main machine
Customized
Carbon steel
1 set
2
Lifting platform
Include hydraulic station
1set
3
X-axis linear motion device
Synchronous belt, synchronous wheel
1
4
Y-axis linear motion device
Coupling, bearing housing, ball screw, etc
1 set
5
