1.6m PLC Control Automatic Stable Working Glass Sandblasting Machine in Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Certification
- CE, CE
- Glass thickness
- 3-40mm
- Shipping cost
- Contact the supplier about freight and estimated delivery time.
- Secure payments
- Every payment you make on is protected by the platform.
- Refund policy
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
- Voltage
- 220/240/380/415/480V
- Control system
- PLC
- Description
- Vertical Glass Sand Blasting Machine
- Max. glass height
- 1.6m
- Guns
- 4 Automatic, 1 Manual
- Power
- 3.5kw
- Thickness of glass
- 3-30mm

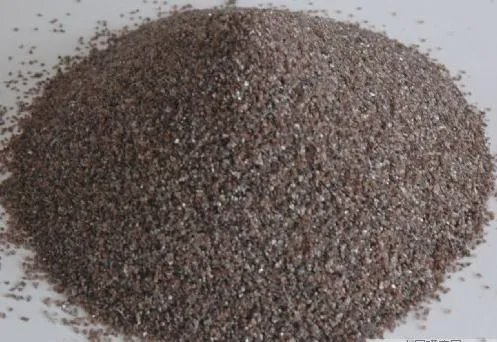

- Sand type
- Alum Oxide Sand, 60# or 80#
- Size of machine
- 4.5*1.5*2.2m
- Weight
- 1000kg
- Structure
- Vertical
- Transport package
- Bubble Plastic Bag
- Specification
- CE
- Hs code
- 84248999
- Production capacity
- 20set Per Month
- Subcategory
- Glass machine
- Subcategory 2
- Glass sandblasting machine
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 84013102
Description

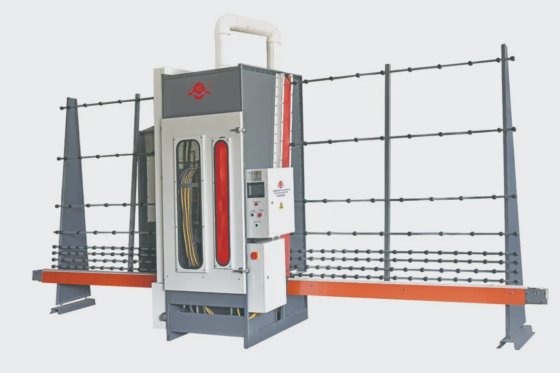

1.6m PLC control Automatic Stable Working Glass Sandblasting Machine
Introduction of the machine
The machine is for sand blasting patterns or trademark on the glass surface, or sand blast the whole surface for separate wall and shower room door.
Machine Feature:
1. Machine system: Japan Mitsubishi system

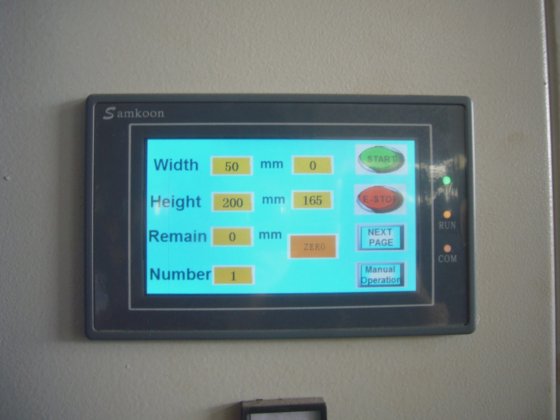

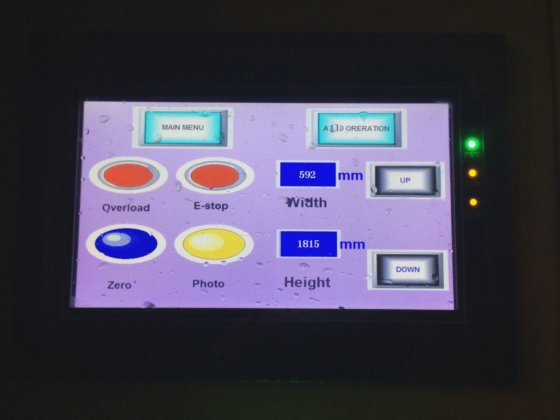

2. Plc control can adjust width and height automatically, also can adjust guns stopover time, and remain space!
3. Machine automatically remove dust
4. There are 4 guns automatically, 1 guns manual! automatic and manual control for option
5. Machine has excellent working performance and high efficiency
Machine Specification
Model type
YD-SB-2500
YD-SB-2000
YD-SB-1500
Glass height (mm)
2500
2000
1500
Max. glass size (mm)
2500x3000
2000x3000
1500x3000
Min. processing size (mm)
200x500
200x500
200x500
Glass transfer speed (m/min)
5
5
5
Nozzle moving speed (m/min)
5~25
