Newport MM4006—Multi-Axis Motion Controller with 80-Bit Processing, PID-FF Servo Control, and RS-232-C/IEEE-488 Interfaces in Gatineau, Quebec, Canada
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Stock number
- MM4006
- Category
- Motion Controllers in Canada
- Subcategory
- Motion control
- Subcategory 2
- Optical physics & lab
- Subcategory 3
- Mechanical positioning
- Listing ID
- 83973798
Description
The Newport MM4006 is a multi-axis high-performance motion controller and driver designed for precision motion control applications. It supports 2 to 8 axes and features 80-bit floating-point processing for high-resolution computations. The controller includes RS-232-C and IEEE-488 interfaces, enabling seamless communication with external systems. It offers PID-FF servo loop control, ensuring accurate velocity tracking and positioning. Additionally, the MM4006 provides low-noise PWM amplifiers optimized for various motorized stages, making it ideal for demanding motion applications.

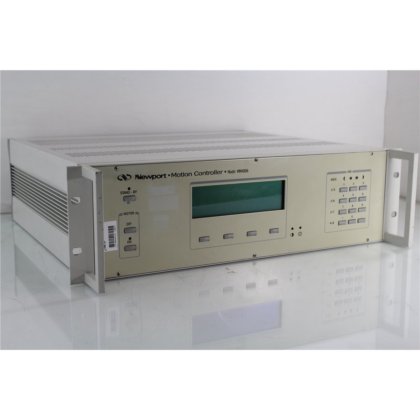

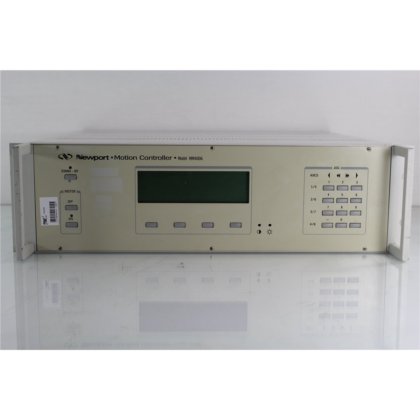

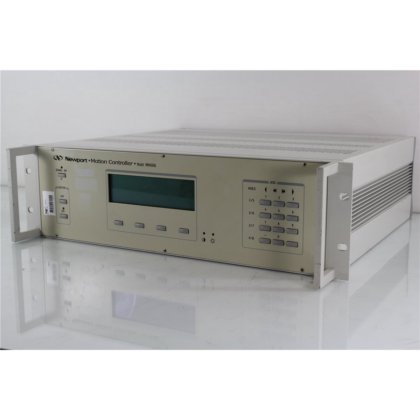

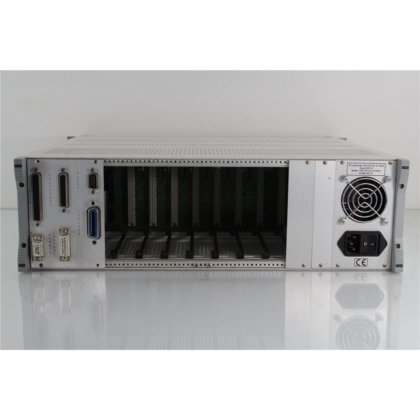

Newport MM4006 Motion Controller
Supplying 500W of motor drive power the MM4006 can simultaneously handle up to eight axis of motion using any combination of motorized products in DC or stepper motor variants (except PM500 series).
