Universal Tensile Testing Machine for Labtest Software Calculates E-Modulus Maximum Load Tensile Strength Strain at Break Test in Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Lifetime
- Certification
- CE, ISO
- Automatic grade
- Automatic
- Structure
- Vertical
- Capacity
- 10-5000n
- Crosshead speed
- 0.05-500 mm/Min
- Accuracy
- 0.5
- Power
- 220V
- Tensile space
- 800mm
- Weight
- 110kg
- Transport package
- Fumigation-Free Wooden Box
- Specification
- 425x400x1350
- Hs code
- 9024101000
- Production capacity
- 1000
- Category
- Materials Testing in China
- Subcategory
- Rubber machinery
- Subcategory 2
- Rubber product making machinery
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 82179028
Description

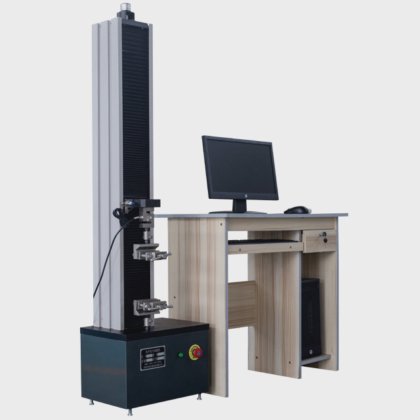

WDDBW series Single Column Computer Control Electronic Universal Testing Machine
Product Description
The single column series testing machine is designed and produced for the tensile, compression, peel,and bending tests of the rubbers, plastics, thin films or other materials.
And it is also used for the performance tests of the thin metal, wire, fiber, elastomer, foam materials.

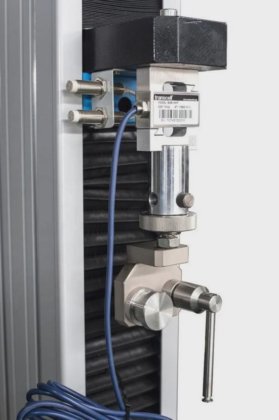

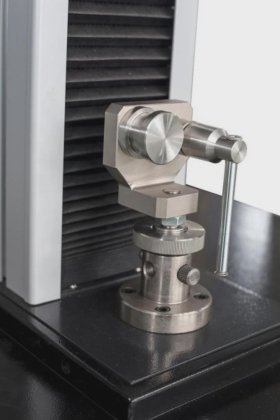

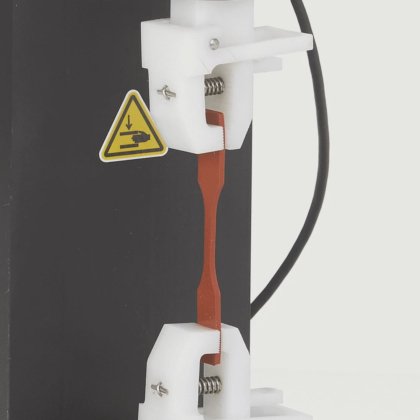

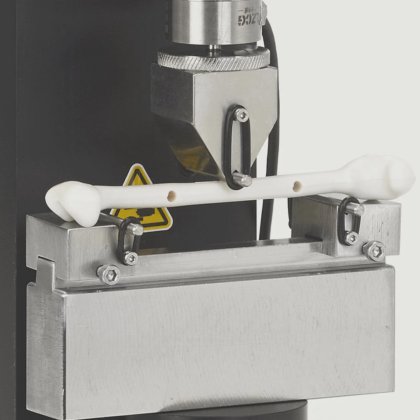

Detailed Photos
Product Parameters
Model
WDDBW Series
Maximum test force
50N~5000N
Test machine level
Level 1
Test force measurement range
2%~100%FS
Relative error of test force indication
Within ±1%
Relative error of beam displacement indication
Within ±1
Displacement resolution
0.001mm
Beam speed adjustment range
0.05~500 mm/min
Relative error of beam speed
Within ±1% of the set value
Effective stretching space
800mm standard model (can be customized)
Dimensions
425×400×1350mm
power supply
220V±10%; 850W
Machine weight
