Kraft Corrugated Paper Machine Drying Woven Flat Spiral Dryer Fabric with Spiral Loop Seam in Jiangsu, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Warranty
- Certification
- RoHS, ISO 9001:2000, ISO 9001:2008, CE
- Surface treatment
- Heat Setting
- Manufacturing process
- Woven
- Material
- Polyester
- Fabric type
- Small/Medium/Large Loop
- Application
- Filtration Textiles
- Transport package
- Wooden Case
- Specification
- Make to order
- Hs code
- 59119000
- Category
- Papermaking in China
- Subcategory
- Paper machinery
- Subcategory 2
- Paper machinery parts
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 82132332
Description

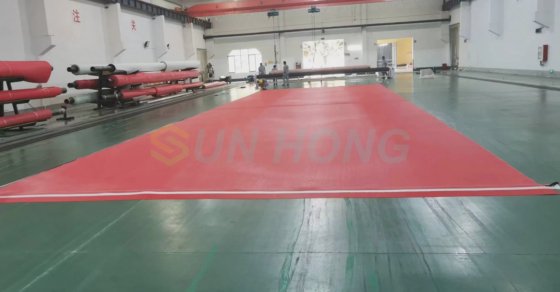

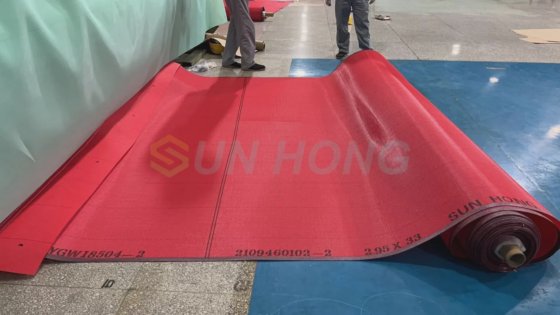

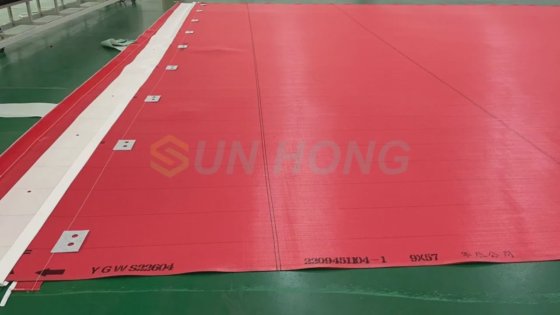

SUN HONG PAPER MACHINE CLOTHING -- Dryer Fabric
In the dryer section of paper machine, the paper sheet was transfered by dryer cylinders. The dryer fabric hold the sheet tightly in contact with the cylinders through the dryer section. Constructed of monofilaments, dryer fabrics must be heat resistant, rugged, and designed for both drying efficiency and runnability. SUN HONG provided dryer fabrics are fully resistant to hydrolysis and able to with stand all heat and humidity conditions in the dryer section. Most of the standard types of fabrics can also be made of polyester yarns. The dryer fabric mainly have two type , woven type and spiral type. Woven type dryer fabric have two stype yarn flat yarn and round yarn. Sun Hong will suggest suitable dryer fabric according to your paper machine.
Woven Dryer Fabric

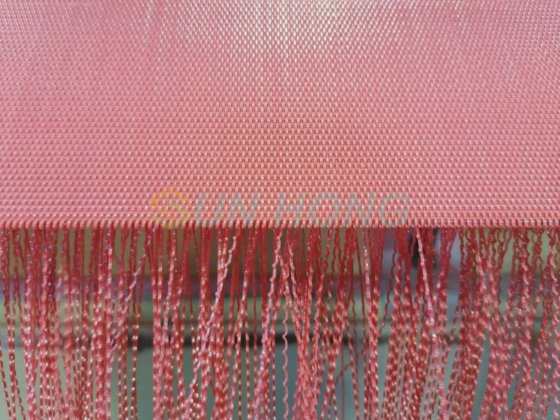

1.5 Layer Flat Yarn Dryer Fabric
Warp Diameter:0.58*0.38mm
Thickness:1.65mm
Weft Diameter:0.6mm
Air Permeability :3500 m3/m2·h/220CFM
Warp Density: 17.3L/cm
Weft:16L/cm
