New Design Horizontal 3 Side or 4 Side Sealing Duplex Output Packing Machine in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Oversea Sale Service
- Shipping cost
- Contact the supplier about freight and estimated delivery time.
- Secure payments
- Every payment you make on is protected by the platform.
- Refund policy
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
- Automatic grade
- Automatic
- Application
- Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
- Forming species
- Bag Moulding
- Forming function
- Forming, Filling, Seal
- Driven type
- Electric
- Material type
- Powder/Granule/Liquid/Sauce
- Packaging
- Bag
- Packaging material
- Film
- Shipping package
- Plywood Case
- Voltage
- 220 V/380V or Custom
- Sachet
- Three or Four Sides Seal
- Certificate
- CE & ISO & SGS
- Material
- SUS304
- Packing material
- Sauce/Liquid/Powder/Oil/Granules
- Power
- 5.5 Kw
- Dirven
- Servo Motor or ABB Motor
- Air
- 0.7-0.8MPa
- Packing type
- Horizontal Type
- Seal parten
- Can Be Custom
- Sealing
- Hot Sealing and Cold Sealing
- Transport package
- Wooden Case
- Specification
- 3800*1000*1450mm
- Hs code
- 8422303090
- Production capacity
- 10 Set Per Month
- Category
- Packaging Machinery in China
- Subcategory
- Packing machinery
- Subcategory 2
- Packaging & printing
- Subcategory 3
- Multi-function packing machine
- Listing ID
- 81759257
Description

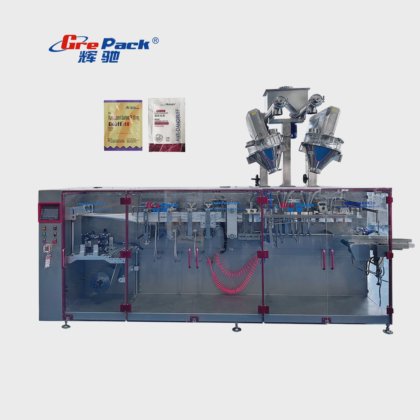

Duplex Horizontal Packing Machine
This machine is an ideal bag packing equipment that meets the requirements of high quality packaging and smaller bag type. The packaging speed is fast and can realize the three-side sealing and four-side sealing bag type. This machine is suitable for powder, particle, liquid, paste, solid and other materials packaging needs; Roll film molding, reduce the cost of packaging.
Model
HC-180D
Pouch Type
3/4 side seal
Min Pouch
70×75mm
Max Pouch
90×220mm
Speed
<100bags/min
Filling Range
max 100ml
Filling station
2
Power
5.5kw
Voltage
380V 3P 50Hz
Air Consumption
300L/min
Air Pressure
0.6MPa
Film roll max dia
450mm
film roll core dia
70-80mm
machine weight
1600kg
Film thickness
60-180μ
Machine dimension
3800×1000×1450mm
Shanghai Grepack Packing Machinery Co., Ltd.
$45,000 USD
