Screw Making Machine/2-3 Spindles Thread Rolling Machine in Heilongjiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- on Line or at Site
- Application
- Bolt Screw Making
- Shipping cost
- Contact the supplier about freight and estimated delivery time.
- Secure payments
- Every payment you make on is protected by the platform.
- Refund policy
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
- Max.diameter
- 70 mm
- Pitch
- 5-6 mm
- Transport package
- Package
- Specification
- M10-m20
- Production capacity
- 200sets/Year
- Category
- Threading & Tapping in China
- Subcategory
- Manufacturing & processing machinery
- Listing ID
- 81746188
Description
Product Description
1 Machine tools
feed with double oil cylinders
2 intermittent rolling
3 free indexing works,
4 It is by the high-precision hydraulic workpiece clamping thimble rolled.
5 precision and efficient.
6
reasonable structure.

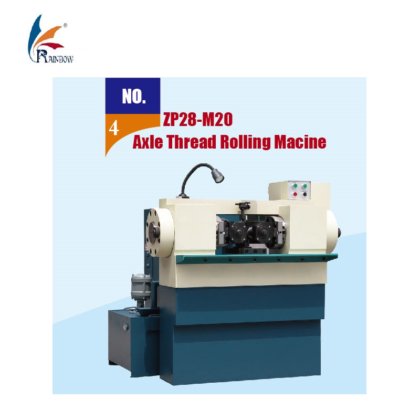

ZPA28-20 THREAD ROLLING MACHEINE
TECHNICAL PARAMETERS
MAX.rolling pressure
KN
200
Rolling spiline range
Max.diameter
Radial feed
mm
70
Axial feed
mm
45
Max.pitch
Radial feed
mm
5
Axial feed
mm
6
Rolling die range
Max.outer diameter
mm
178
Aperture
mm
54
Max.width
mm
140
Max.center distance btw.main axis
mm
240
Main axis rotation
r.p.m.
28.35.45.56
Main axis inclination
±5°
Feed travel
mm
0-12
Center height
mm
900
Gross power
KW
11
Dimensions(L×W×H)
mm
1550×1460×1600
