PV Mounting Bracket Roll Forming Machine in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Customized
- Customized
- Feeding material width range
- 40-200mm
- Rolling steel strip thickness
- 2-2.5mm
- Rolling steel strip material
- Q235 Cold Steel Strip
- Working speed
- 10m/Min
- The shortest rolling workpiece length
- 2000mm
- The rolling workpiece straightness error
- 1-1.5 mm /1500 mm
- The rolling workpiece angle error
- ≤±1.5/1000mm
- Transport package
- Export Packing
- Specification
- EN-160SP
- Hs code
- 84552210
- Production capacity
- 1000 Pieces/Year
- Category
- Bending & Forming in China
- Subcategory
- Roll forming machine
- Subcategory 2
- Metal processing machinery
- Subcategory 3
- Metallic processing machinery
- Subcategory 4
- Manufacturing & processing machinery
- Listing ID
- 81736620
Description

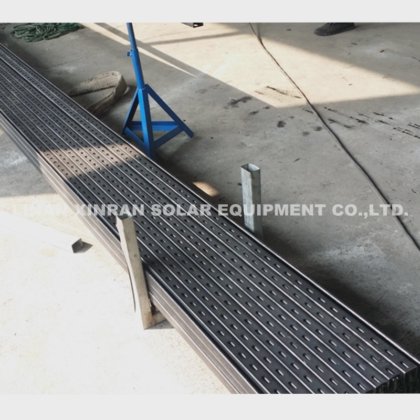

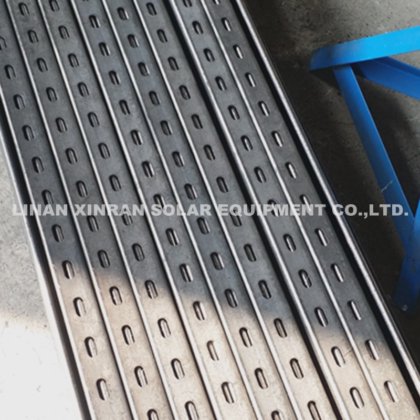

PV Mounting Bracket Roll Forming Machine
I: Product technical parameters and requirements
Feeding material width range:
40-200mm
Rolling steel strip thickness:
2-2.5mm
Rolling steel strip material:
Q235 cold steel strip
Working speed:
10m/min
The shortest rolling workpiece length:
2000mm
The rolling workpiece straightness error:
1-1.5 mm /1500 mm
The rolling workpiece angle error:
≤±1.5/1000mm
The rolling workpiece fixed length error:
10m±1.5mm

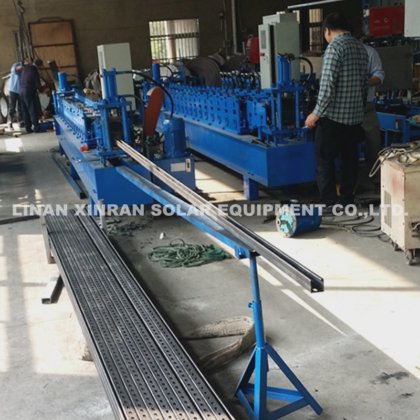

II: The working process of
solar photovoltaic stand making machine

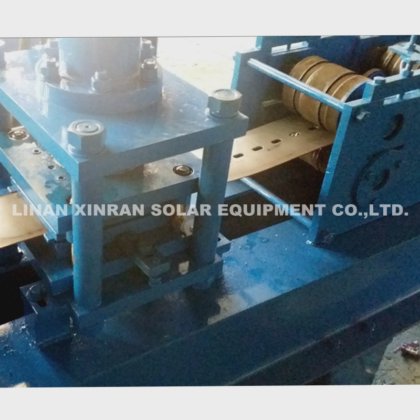

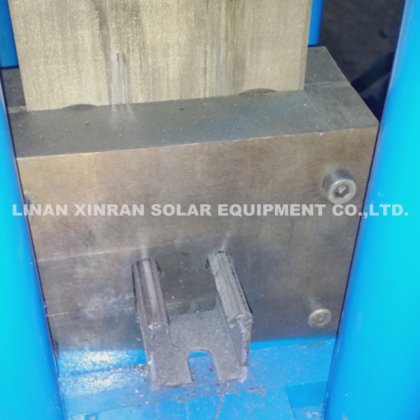

5T Uncoiler- Leveling - Servo feeding - Hydraulic punching hole- Rolling forming - Forming - Hydraulic cutting system - product output.
The technical specification of main components
5T Uncoiler
Material inside diameter: φ508mm
Material inside diameter harmomegathus range: ф480-520 mm
Material max outer diameter: φ1000mm
Loading weight: ≤5T
Expansion way: 5T hydraulic automatic type
Leveling machine
