Multifunctional Hot Wire TIG Cladding System in Heilongjiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Quality
- Top
- Current
- Alternating Current
- Application
- Container
- Transport package
- Container
- Specification
- GIT
- Production capacity
- 20set/Year
- Category
- Welding equipment in China
- Subcategory
- Industrial equipment & components
- Listing ID
- 81689171
Description

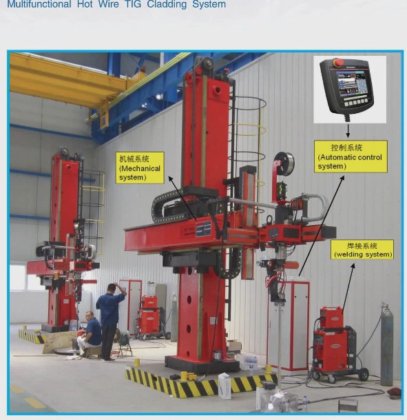

In total the automatic surface welding machine for inner walls of valves is composed of 6 systems:
1. Surface welding machine head, 2. Cross operation frame, 3. Control system, 4. Hot-wire power supply, 5. Welding power supply, 6. Water cooling system
II. Technological method:
The automatic surface welding for inner walls of valve adopts hot-wire TIG surface welding technology with welding wire at Φ1.0-Φ1.2 diameter. The surface welding can automatically arrange weld passes by means of automatically increasing one weld pass space after completing surface welding of one circle along inner walls of valves, as shown in figure below.
III. Main technical indices:
1 Range of pipe inner diameter: Φ45-Φ800mm.
2 Height of pipes: <=1000mm.
3 Length of welding torch: 1100mm.
4 Automatic tracking accuracy of arc voltage: ±0.3V.
5 Pulse current of cladding: 240-260A.
6 Arc voltage: 12-16V.
8 Diameter of electrode: Φ2.4-Φ3.2mm.
9 Diameter of wire: 1.0-1.2mm.
