Polisher Machinery Shot Blasting Pass-Through Polishing Machine in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Production scope
- Product Line
- Automation
- Automation
- After-sales service
- 3years
- Transmission type
- Flexible
- Automatic production line
- Assembly
- Certification
- CE, ISO
- Flexible production
- Intelligent Manufacturing
- Rhythm
- Non Flow Production Line
- Transport package
- Angle Iron Frame, Wooden Cases, Wire Rope
- Specification
- After-sales Service 3-Year Warranty
- Production capacity
- 5000~200000sets/Year
- Subcategory
- Metal production line
- Subcategory 2
- Assembly line & production line
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 81689120
Description

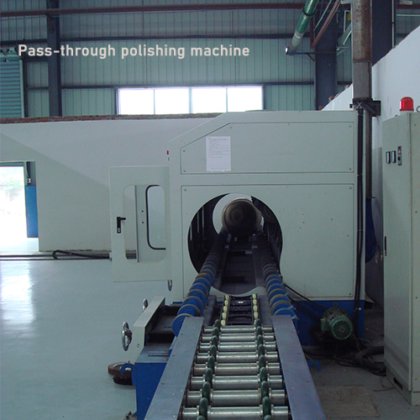

Pass-through polishing machine
Introduction
Work efficiency of polishing machine:
The surface of the workpiece is polished. After the first polishing wheel passes through the eighth one in order, the required finish can be achieved Ra≤0.8
The working cycle is about 20 minutes or so.
The equipment is welded with high-quality steel, the surface is finished after welding, and the front and rear feeding racks are 2m each.
Main parameters
The main machine (steel cylinder rotating and passing) adopts a 1.5 kW 4-pole motor at 1400 rpm, which is driven by a speed governor and is equipped with a frequency conversion speed regulator, which rotates smoothly and has strong operability;
4 polishing motors, 3 kilowatts, 2 poles, 2800 rpm, equipped with high-quality motors;
A set of power distribution control system, frequency converter made in Shanghai, other components are Delixi
Working principle
The motor and the power head drive the polishing wheel through the belt.
