High Voltage Switch Dynamic Characteristics Circuit Breaker Testing Instrument in Chongqing, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Lifetime Technical Support
- Accuracy grade
- 0.1
- Load way
- Electronic Load
- Loading method
- Static Load
- Display
- Digital
- Control
- Digital Control
- Weight
- 10kg
- Power source
- AC220V
- Product name
- High Voltage Switch Dynamic Characteristics Circui
- Test standard
- IEC62271
- Apparatus
- High Voltage Circuit Breaker Testing Instrument
- Application
- High-Voltage Switch/Circuit Breaker Tester
- Function
- Circuit Breaker Measurement Analysis Instrument
- Device
- Switch Mechanical Characteristic Testing Instrumen
- Time measurement range
- 6000ms, Resolution 0.1ms
- Time measurement error
- <1%Rdg+0.2ms
- Coil current measurement
- 20.00A, Resolution 0.01A, Error 2%+0.2%Fs
- Dc power out
- DC30V~250V/20A (Instantaneous)
- Transport package
- Wooden Case
- Specification
- ISO Certificate
- Hs code
- 9031809090
- Production capacity
- 200PCS/Month
- Category
- Circuit Breakers in China
- Subcategory
- Test machine
- Subcategory 2
- Test instrument
- Subcategory 3
- Instruments & meters
- Listing ID
- 81630510
Description

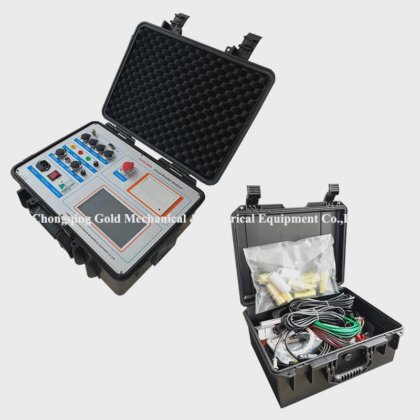

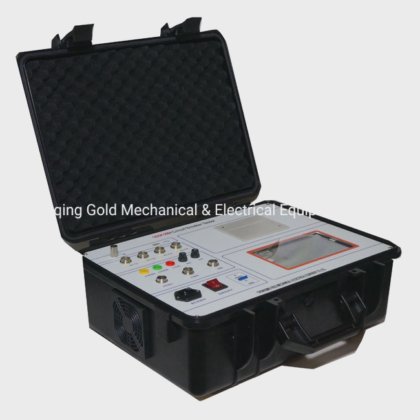

GDGK-306 High Voltage Switch Dynamic Characteristics Circuit Breaker Testing Instrument
Product description:
1. GDGK-306 High Voltage Switch Dynamic Characteristics Testing Instrument is our company designed to meet the need of testing High-Voltage Circuit Breakers .
2. GDGK-306 High Voltage Switch Dynamic Characteristics Testing Instrument takes the ARM7 unit for core to sample, process and then output; the main characteristic is that it's operated in alt.
3. GDGK-306 High Voltage Switch Dynamic Characteristics Testing Instrument has many advantages such as intelligence, multi-function, accurate data, strong anti-jamming, easy operation, small size, beautiful appearance, etc.
4. GDGK-306 High Voltage Switch Dynamic Characteristics Testing Instrument can test the Circuit Breakers as follows: indoors or outdoors Circuit Breakers with less oil or more oil, vacuum Circuit Breakers, SF6 Circuit Breakers and so on.
Features:
1
Test standard: IEC62271
2
$3,000 USD
