100kv Transformer Oil Dielectric Strength Tester with LCD Touch Panel Temperature-Testing Function in Chongqing, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Lifetime Technical Support
- Accuracy grade
- 1
- Load way
- Electronic Load
- Loading method
- Static Load
- Display
- Digital
- Control
- Fully Automatic
- Weight
- 45kg
- Power source
- AC220V
- Oil cylinder position
- Top
- Apparatus
- Insulating Oil Breakdown Voltage Tester
- Application
- Transformer Oil Breakdown Voltage Bdv Oil Tester
- Function
- Breakdown Voltage Tester with LCD Touch Screen
- Device
- Oil Dielectric Strength Breakdown Voltage Tester
- Output voltage
- AC 0V~100kv
- Max test times
- 9
- Init wait times
- 0~999s
- Stir time
- 0~999s
- Storage
- 100 Groups
- Feature
- All The Selection Can Be Done by Touch Panel
- Transport package
- Wooden Case
- Specification
- ISO Certificate
- Hs code
- 9031809090
- Production capacity
- 200PCS/Month
- Category
- Materials Testing in China
- Subcategory
- Test machine
- Subcategory 2
- Test instrument
- Subcategory 3
- Instruments & meters
- Listing ID
- 81624979
Description
100kV Transformer Oil Dielectric Strength Tester with LCD Touch Panel Temperature-testing Function
I
ntroduction:
GDYJ-502A 100kV Transformer Oil Dielectric Strength Tester with LCD Touch Panel Temperature-testing Function
is improved on basis of GDYJ-502 Insulation Oil Dielectric Strength Tester.
GDYJ-502A 100kV Transformer Oil Dielectric Strength Tester with LCD Touch Panel Temperature-testing Function
increases temperature measurement.

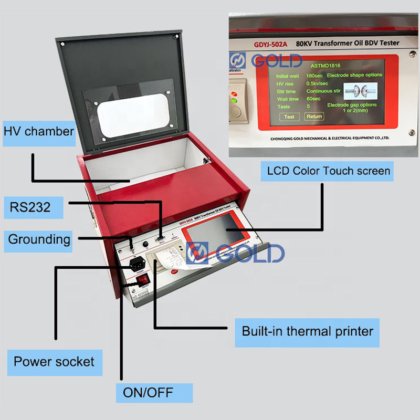

All the selection can be done by Touch Pad with Color LCD.
F
unctions:
1
IEC60156/IS6792/BS5874/VDE0370-5
2
User-defined
3
5 minute test
4
ASTMD877
5
ASTMD1816
6
JIS C 2101-99(S)
7
Proof "A"
8
Proof "B"
S
pecifications:
1
Voltage OEM for clients
2
AC220V±10% power supply input
3
Output voltage:AC 0V~100KV
4
Rate of voltage rise: 0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
5
$1,500 USD
