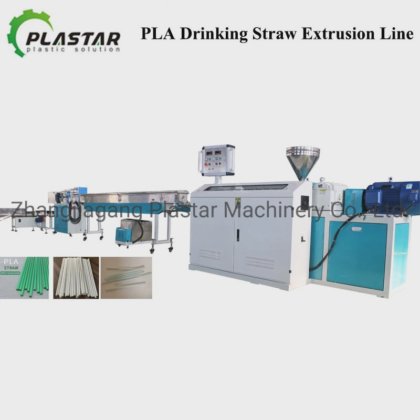

PLASTAR Extrusion Machine for Drinking Straw in Jiangsu, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Engineers Available to Overseas
- Plastic processed
- PLA
- Product type
- Extrusion Molding Machine
- Feeding mode
- One Feed
- Assembly structure
- Integral Type Extruder
- Screw
- Single-Screw
- Engagement system
- Full Intermeshing
- Screw channel structure
- Non Deep Screw
- Exhaust
- Exhaust
- Automation
- Automatic
- Computerized
- Non-Computerized
- Screw dia.
- 50mm
- Diameter:length
- 28:1
- Cut angle
- 30/45/60/90
- Raw material
- PLA PE PP
- Capacity
- 25-30kg/H
- Dimension(l*w*h)
- 9*1.5*2.1m
- Name
- PLA Biodegradable Straw Extrusion Line Production
- Voltage
- 220-415V/50-60Hz
- Supply ability
- 20 Set/Sets Per Month
- Transport package
- Wood Package
- Specification
- it depends
- Hs code
- 8477800000
- Subcategory
- Plastic extruder
- Subcategory 2
- Plastic machinery
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 81479996
Description
Product Description
1. Introduction
An ideal drinking straw machine for making balloon stick.
PL-12 straight straw making machine is our new design. It adopts the screw diameter 50mm instead of 45mm, and L: D is 28: 1,20:1 The new design makes it much easier to plasticize and higher output. It is an economical perfect machine for making straws.
2. Characteristics
Colors: Single, two, three or five, spiral stripes, straight stripes.
Cut end: 90° /90° , 90° /45° , 90° /60° , 45° /45° , 60° /60°
All the direct contact parts made from stainless steel.
The cutting unit adopted the big plate cutter and with automatic gathering system.
The breaker, AC contactor and knob switch brand is CHINT
The inverter is DELTA
3.Technical data
Colour Single Two Three
Diameter of screw: 50mm 50mm+1x25mm 50mm+2x25mm
L:D 28:01:00 28:1 / 20:1 28:1 / 20:1/20:1
Max. extrusion capacity 35kgs/h
Material PE / PP
Specification of straw Diameter.:φ2- φ 14mm
Length tolerance:± 0.1 -1mm
Thickness:0.05-1mm
Services offered by seller
This seller offers spare parts
This Seller offers repair & maintenance services
This seller offers transport & logistics
This seller offers new machines
This seller offers on-site assembly and disassembly
