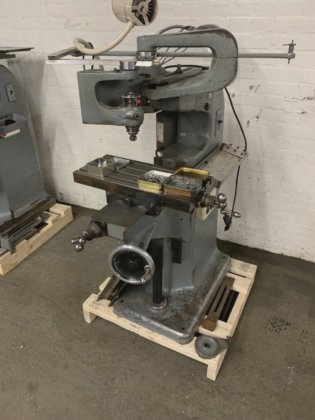

Gorton 2-Dimensional Pantograph / Engraver Model P1-2, with Tooling in Pawtucket, RI, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Category
- Engraving Machines in USA
- Subcategory
- Process engineering equipment
- Subcategory 2
- Cnc, metalworking & manufacturing
- Listing ID
- 81337339
Description
Gold Machinery Group
-----------------------------------------------------------------------------------------
We are pleased to offer you...
Gorton 2-Dimensional Pantograph / Engraver Model P1-2,
with Tooling
Our Inventory Number:
5948-330
Technical Specifications:
115V/1PH/60HZ
Table working surface: 8" x 18"
Table dimensions, overall: 8-7/8" x 24"
Longitudinal feed capacity: 10"
Cross feed capacity: 8.75"
Vertical spindle feed: .31"
Vertical knee feed: 11.125"
Copy table cross movement: 5"
Slider head cross movement: 7.25"
Throat opening above column ways: 8"
Swing above column ways, maximum: 21"
Spindle nose to table, maximum: 11.625"
Spindle nose to table, minimum: 0"
(8) Spindle speeds, range:
4700 to 18,000 RPM
Motor: 1/4 HP
Overall dimensions: 35" x 42" x 48" high
Estimated weight: 640 lbs.
Equipped with:
3" vise
Cast iron base
work light
Clamps / workpiece hold downs
Collets /tooling as photographed
$2,750 USD
