Leadcrete 10~60m3/H Conveyor System in Henan, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Structure
- Conveyor System
- Material
- Stainless Steel
- Material feature
- Heat Resistant
- Application
- Grain Transport, Mining Transport, Tunnel Building,Underground Engineering
- Output
- 10~60m3/H
- Chain speed
- 0-0.7m/S
- Max.tilt angle
- 25°
- Slot width
- 500mm
- Slot height
- 340mm
- Scraper space
- 266mm
- Transport package
- Standard Export Package
- Specification
- 960KG
- Production capacity
- 500sets/Year
- Category
- Shotcrete Machines in China
- Subcategory
- Conveyor
- Subcategory 2
- Chain conveyor
- Subcategory 3
- Conveyor & parts
- Subcategory 4
- Industrial equipment & components
- Listing ID
- 80507705
Description

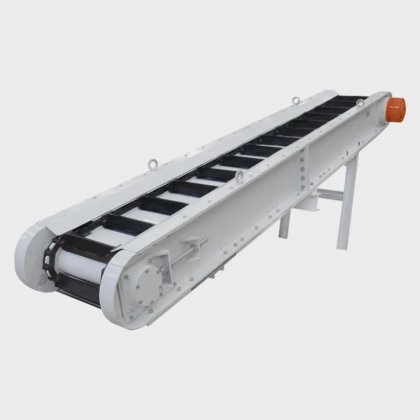

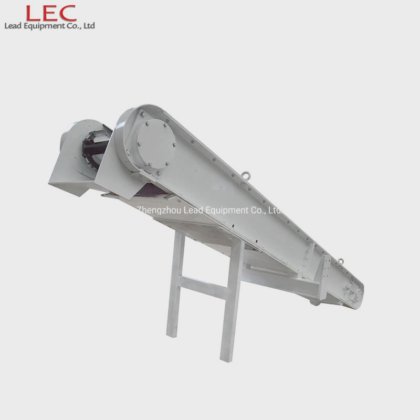

LSC500H Scraper Conveyor
1. Descri
ption:
LSC500H is a heavy duty scraper conveyor driven by hydraulic motor. We our specially design it to follow our years experiences, it is for bulk material conveying equipment. It is suitable for the transportation of broken materials, ores, slag, stone, slag and other granular and small blocks. It is widely used in mining, construction, tunnel building, underground engineering, water conservancy and hydropower engineering.
2.
Features:
With solid structure, to withstand the shocking, impacting, pounding of the stone, soil, coal, muck, etc.
With c
ompact size
, to be installed in a small room
To be conveyed with large tilt angle
To insert the conveyor into the material, this equipment can work without the loader
Reverse run
3. Technical Specification:
Model
LSC500H
Output
10~60m3/h
Chain speed
0-0.7m/s
Max.tilt angle
25°
Slot width
500mm
Slot height
340mm
Scraper type
T
Scraper space
266mm
Hydraulic powerpack for motor
80L/min,10MPa
Weight
960KG
We reserve the right to change technical specifications without prior notice
4.
Pictures:
