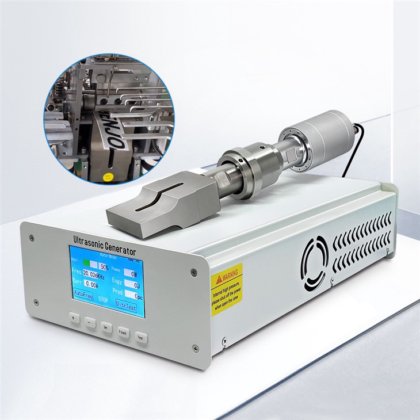

Ultrasonic Belt Cutting System in Shenzhen, Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- S20-l90w18
- 20KHz; 2000W; 220V 50/60Hz; 90mm×18mm; 60-100times/min; 13.63kg; 14.43kg
- S20-l78w20
- 20KHz; 2000W; 78mm×17mm; 80-100times/min; 11.70kg; 12.50kg
- S30-l33w16
- 30KHz; 1600W; 33mm×16mm; 80-100times/min; 7.60kg; 8.40kg
- S35-l32w10
- 35KHz; 1200W; 32mm×10mm; 80-100times/min; 7.40kg; 8.20kg
- Category
- Welding equipment in China
- Subcategory
- Ultrasonic welding application
- Listing ID
- 78274375
Description
The Ultrasonic Belt Cutting System is an advanced technology that utilizes ultrasonic vibrations to precisely and efficiently cut belts of various materials. This cutting system is widely used in various industries, including textiles, automotive, and packaging, where precision and speed are crucial for production processes.
The core of the Ultrasonic Belt Cutting System is an ultrasonic transducer that generates high-frequency vibrations. These vibrations are then transmitted to a cutting blade, causing it to move rapidly in a controlled manner. The rapid movement of the blade creates a localized cutting force that is sufficient to cleanly slice through the belt material.
One of the key advantages of the Ultrasonic Belt Cutting System is its precision. The ultrasonic vibrations allow for a very narrow and controlled cutting width, ensuring that the belts are cut to the exact specifications required.
