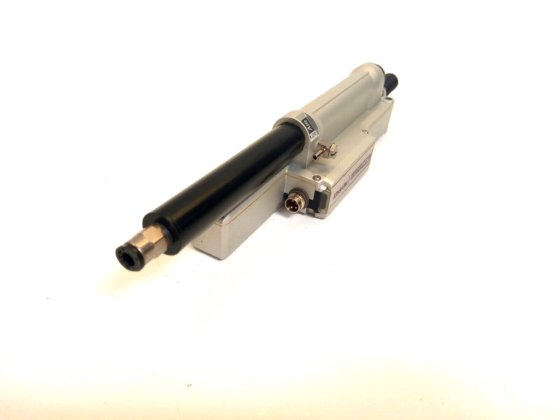

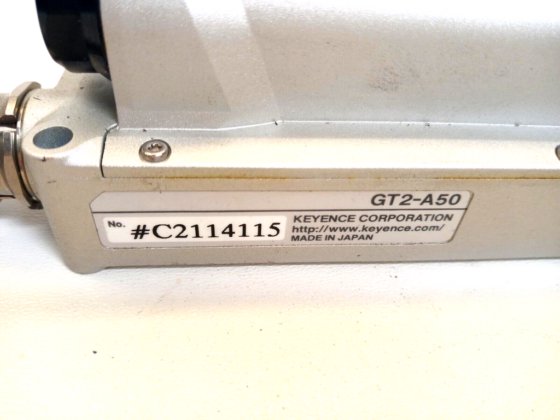

KEYENCE GT2-A50 CONTACT SENSOR GT2A50 Measuring sensor block type GT2 A50 compressed air in Borken, North Rhine-Westphalia, Germany
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Stock number
- 25399
- Measuring principle
- Quartz glass measuring scale, CMOS image receiver projection system, absolute measuring method (without scanning error)
- Measuring range
- 50 mm
- Resolution
- 0.5 μm
- Display accuracy
- 3.5 µm (S-S)*1
- Measuring force
- Mounting downwards
- Side mounting
- 2.8 N*2
- Assembly upwards
- 2.4 N*2
- Sampling cycle
- 1 ms
- Operating led
- Two-color LED (red, green)
- Environmental resistance
- Degree of protection
- Pressure resistance
- 1 MPa
- Compressed air area
- 2.5 bar to 5 bar
- Ambient temperature
- 0 to +55 °C (no freezing)
- Relative humidity
- 35 to 85% RH (No condensation)
- Vibration resistance
- 10 to 55 Hz, double amplitude 1.5 mm, 2 hours each in X, Y and Z directions*4
- Materials
- Main housing
- Protective rubber bellows
- NBR
- Contact tip
- Stainless steel*5
- Measuring head cable
- Optional (M8 connector)
- Mass
- Approx. 405 g (without cable)
- Age rating
- No age restrictions
- Content
- 1 piece
- Category
- Sensors in Germany
- Subcategory
- Industrial supplies
- Subcategory 2
- Sensors & controllers
- Subcategory 3
- Autom., drive, control
- Listing ID
- 74866110
Description
Manufacturer's technical specifications:
Model
GT2-A50
Measuring principle
Quartz glass scale, CMOS image pickup projection system, absolute measurement method (no scanning error)
Measuring range
50 mm
Resolution
0.5 μm
Display accuracy
3.5 μm (S-S)
*1
Measuring force
Downward mounting
3.2 N
*2
Side mounting
2.8 N
*2
Upward mounting
2.4 N
*2
Scanning cycle
1 ms
Power LED
Bi-color LED (red, green)
Environmental resistance
Protection class
IP67
*3
Pressure resistance
1 MPa
Compressed air range
2.5 bar to 5 bar
Ambient temperature
0 to +55 °C (No freezing)
Relative humidity
35 to 85% RH (No condensation)
Vibration resistance
10 to 55 Hz, double amplitude 1.5 mm, 2 hours each in the X, Y, and Z directions
*4
Materials
Main body
Main body: Die-cast zinc, Cylinder part: Aluminum alloy, Plastic part for compressed air connection: Polyacetal, Metal part of compressed air connection: Brass nickel plating, Display: Polyarylate
Protective rubber bellows
NBR
Contact tip
Stainless steel
*5
Measuring head cable
