Automatic Middle Speed Suppository Forming Shell Making Machine (Zs-U) in Liaoning, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Output
- 6000-10000suppositories/h
- Center distance of bullet
- 17.5mm
- Center distance of duck bill
- 26.25mm
- Filling volume
- <5ml/PC
- Allowable error of granular weightt
- ± 2%
- Volume of storing fluid vessel
- 50L
- Height of feeding
- 1400mm
- Total power
- 13KW
- Pressure
- 0.6Mpa
- Air consumption
- 1.5M3/Min
- Water consumption
- 1000kg/h
- Total weight
- 2000kg
- Overall dimension
- 3500*3000*2500mm 3490× 2900× 2000mm
- Shape of suppository
- Bullet form, torpedo form, duck-mouth form and other special form
- Adaptable cementin
- FA-glyceride FA-gelatin polyglycol
- Subcategory
- Lab equpment
- Subcategory 2
- Liquid filling machine
- Subcategory 3
- Suppository filling machine
- Listing ID
- 70980227
Description

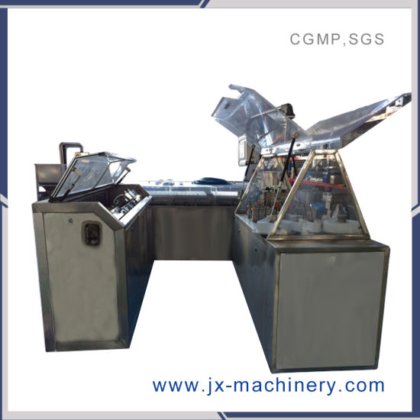

Automatic Middle Speed Suppository Forming Filling Sealing Machine for Zs-U
Manufacturing Shell, Perfusing, Cooling Forming and sealed are finished automatically. This machine is equipped with a higher degree of automation
.
It is controlled by PLC and operated by man-machine interface.
This machine includes four parts:
Suppository belt machine
Suppository perfusing machine
Suppository condensing tunnel
Suppository sealing machine.
The suppository process:
Packaging materials (PVC, PVC / PE) → preheat → weld→ Knurl→ formed by blowing→ do line in mouth→ cut bottom line →perfusion →fixed formed by cooling → preheat→ seal →print production Lot # on above →align the edge →count and cut
Automatic Middle Speed Suppository Forming Filling Sealing Machine for Zs-U working video as following:
