3 point linkage snowplow for tractor, SSH-04-2.6-C in Verolanuova, Lombardy, Italy
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Weight
- 460.0 kg
- Overall height
- 880.0 mm
- Tractor power range
- 90 - 130 Hp
- Overall length
- 900.0 mm
- Spacing between the 2 lower points
- 800.0-1040.0 mm
- Distance between the 2 lower points and ground
- 300.0 mm
- Min./max. relief pressure
- 110 - 150 bar
- Min./max. flow
- 18 - 22 l/min
- Interface
- 3 point linkage cat. 2-3
- Angling (left/right)
- 25°
- Float
- +/- 4°
- Blade height
- 880.0 mm
- Side edge thickness
- 7.0 mm
- Shock absorbers
- 6
- Cutting edge
- Steel or Rubber
- Cutting edge height
- 200.0mm / 250.0mm
- Cutting edge thickness
- 20.0mm / 55.0mm
- Trip edge quantity
- 3
- Distance betweens the bolts of the trip edge
- 175.0 mm
- Lights
- √
- Removable skid shoes
- Wheels
- Working width (angled)
- 2400.0 mm
- Hydraulic hoses
- 2 x 1600.0 mm / connections 1.2" AGRI, WP 400 bar
- Overall width
- 2600.0 mm
- Main frame thickness
- 4.0 mm
- Hydraulic cylinder/s ø
- 73.0/36.0 mm
- Packing sizes
- 2600*1000*1000 мм
- Category
- Municipal Maintenance in Italy
- Subcategory
- Snowploughs
- Listing ID
- 68907620
Description

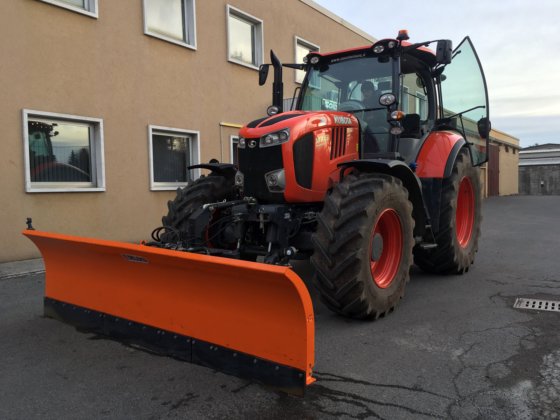

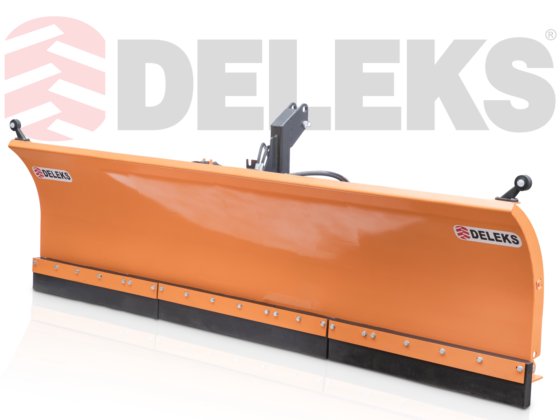

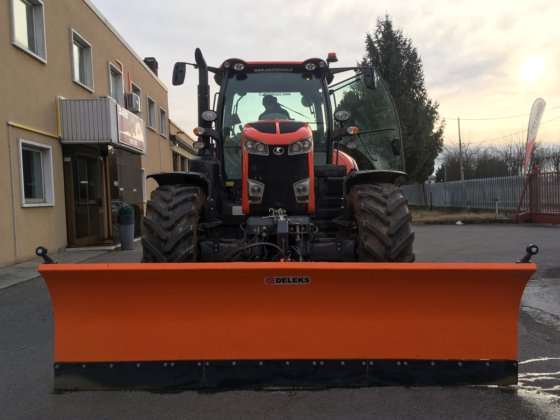

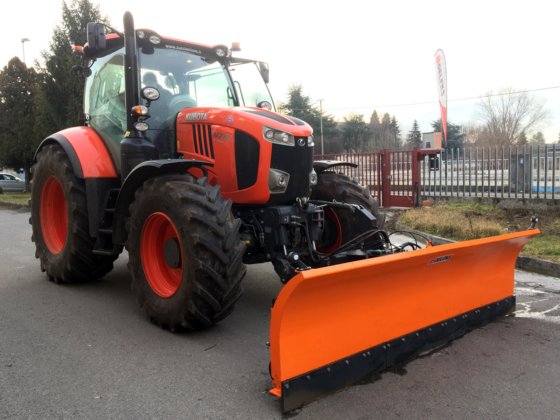

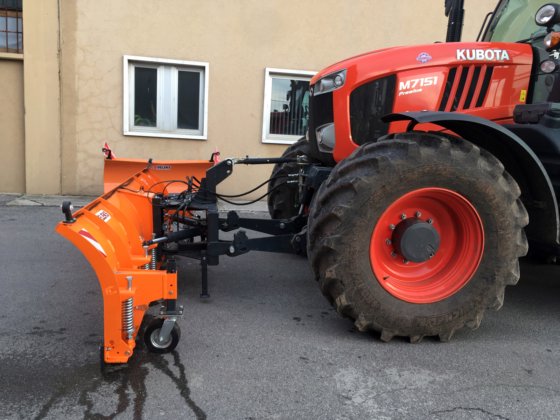

Three point linkage snowplow for tractor 260cm / 460kg - DELEKS® - Snow blade for frontal use
OVERVIEW
SSH-04 2.6-C Heavy-duty snowplow has been designed for larger tractors with 3-point hitch of Cat. 2-3, with power range from 90 to 130hp with rear or front linkage. Compatible with all tractors as Landini Power, M Kubota, Massey Ferguson, John Deere 5 Series, Same Explorer, Fiat, Case, Claas, Deutz-Fahr.
Angling of the plow is done hydraulically using two hydraulic cylinders and two hydraulic pipes 1.6m in length. Supplied with 2 support wheels and marker lights. Conforms to the EC Machinery Directive. 2 years Warranty.
BENEFITS AND FEATURES
Shockproof system with 6 shock absorbing springs to operate in maximum safety.
3 independent steel or rubber scraping elements.
Extreme ease of assembly and use.
Support wheels allow the blade height to be adjusted.
The 3-point hitch is removable and replaceable with EURO linkage for tractor front-end loaders, or Telescopic loaders linkage e.g.
$4,785 USD
