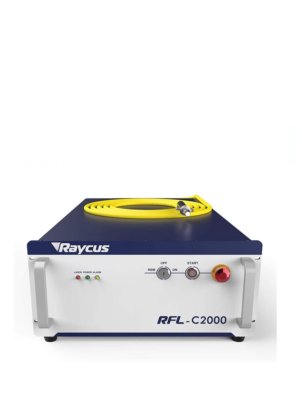

RAYCUS Raycus Laser Source Output Power2000W in Sharjah, United Arab Emirates
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Output power
- : 2000 W
- Operation mode
- : CW/Modulated
- Polarization state
- : Random
- Power range
- : 10~100%
- Central wavelength
- : 1080±5 nm (Nominal Output Power)
- Output power instability
- : ±1.5% (Nominal Output Power)
- Modulation frequency
- :1~5000 Hz (Nominal Output Power)
- Red laser output power
- : 0.5~1 mw
- Beam quality
- : BPP < 1.5 mm x rad
- Divergence half angle
- : 0.06 rad
- Core fiber (μm)
- : 50
- Delivery cable
- : 20 Customizable Length
- Power supply
- : 380±10% V AC, 50/60Hz
- Max. power consumption
- : 6500 W
- Control mode
- : RS-232/AD/Ethernet
- Dimension (w x h x d)
- : 414 x 686 x 158 (Include Handle)
- Weight
- : <70 kg.
- Operating ambient temperature
- : 10~40 ˚C
- Humidity
- : <30-70%
- Storage temperature
- : -10~60 ˚C
- Cooling method
- : Water Cooling
- Subcategory
- Laser source
- Subcategory 2
- Fiber laser machines
- Listing ID
- 66198248
Description
Raycus is the third-generation single module CW fiber laser series developed by Raycus the new fiber laser has higher electro-optical conversion efficiency, higher and more stable optical quality, stronger altitude stress-resisting capacity and they apply optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect in thick sheet cutting. It can be widely used in laser processing like welding, precision cutting, cladding, surface treatment, 3D printing, and other fields. Its optical fiber output characteristics make it easier to integrate with robots into flexible manufacturing equipment to meet the needs of three-dimensional processing.
Raycus Fiber Laser Source with a powerful cutting ability with Stainless Steel, Aluminum, Carbon Steel and other Metal Materials.
Long Service Life
Raycus Laser Source has stable performance, the service can reach 100000 Hours and overall quality of the equipment can be guaranteed safely.
