URW 245 - Compact Mini Cranes in Istanbul, İstanbul, Turkey
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.

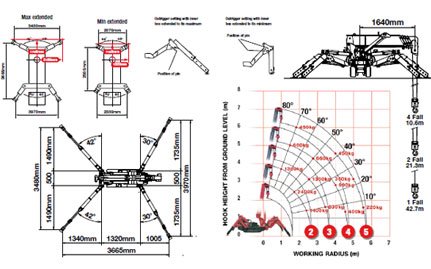

Specifications
- Condition
- new
- Capacity
- 2.4t x 1.5m
- Max
- 10.6m (4 fall), 21.3m (2 fall), 42.7m (1 fall),
- Approx
- 360˚ (continuous) 2.0min-1 (rpm)
- Folded
- 2150mm (l) x 600mm (630mm with 180mm tracks) (w) x 1320mm
- Unladen
- 1500kg
- Point loadings
- Due to the many variables involved, point loadings are only available on request
- Boom length
- 1.98 - 6.19m
- Telescoping speed
- 4.21m/14 seconds
- Boom type
- 5 section hydraulically telescoping boom, hexagonal box construction
- Drive
- hydrostatic, step-less forward and reverse
- Travel speed
- 0 - 2.1km/h (low), 0 - 3.8km/h (high)
- Gradability
- 20˚
- Track ground length
- 1050mm
- Track ground pressure
- 47kPa (0.48kg/cm²) (with 150mm tracks)
- Track width
- 150mm, 180mm
- Fuel
- petrol
- Maximum output
- 6.6kW (9PS) / 1800min- ¹ (rpm)
- Starting method
- electric and recoil start as standard
- Tank capacity
- 6 litres
- Standard equipment
- computer controlled moment limiter (safe load indicator), radio remote control, overwinding alarm, computer controlled intelligent voice warning system, multi-function operation by radio remote control, intelligent throttle activation, automatic hook stow, overload warning device, overload warning lamps
- Optional equipment
- 1 fall hook block, 2 fall hook block, LPG dual power, low marking tracks, 180mm tracks, searcher hook
- Category
- Cranes in Turkey
- Subcategory
- Machinery
- Subcategory 2
- Compact mini cranes
- Listing ID
- 57273873
