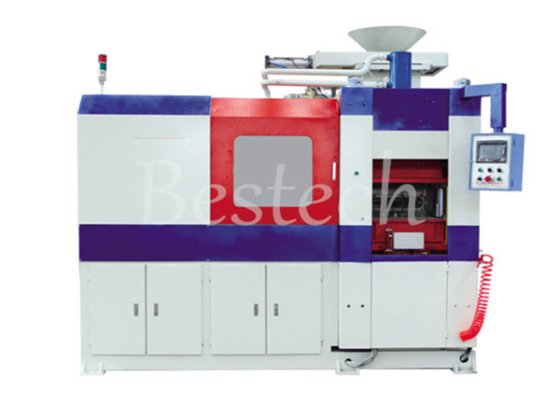

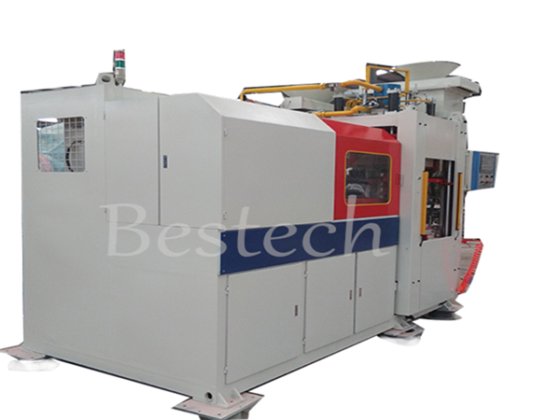

Bestech Horizontal automatic flaskless sand molding machine in Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Parameter
- Z426
- Sand mould size (lxwxh)
- 500x400x(120~150)
- Mould way
- Injection and Compaction
- Compaction specific pressure
- ~1.0Mpa
- Power mode
- Hydraulic pressure
- Max productivity
- 40s/mould(Excluding core setting time)
- Category
- Foundry & Casting in China
- Subcategory
- Foundry equipment
- Subcategory 2
- Sand molding machine
- Listing ID
- 50495671
Description
Horizontal automatic flaskless sand molding machine
Advantages
:
-High ability for compaction sand, rigid and dense mould, suitable to manufacture of complex castings.
-Good working condition and labour saving.
-Dimensional stability and better surface roughness.
-Mould plate with high rate of utilization.
-High efficiency of moulding.
The air-filling and sand filling technology is adopted in the design process of the automatic horizontal parting flaskless green sand molding machine. The top and bottom parts are combined and shot on the four columns at the same time, and then compacted. After molding, the top part and bottom part is respectively de-molded, removable flask, and smoothly assembled, and the sand mold is pushed out by the cylinder. The use of the conveyor line enables automated production of castings.
