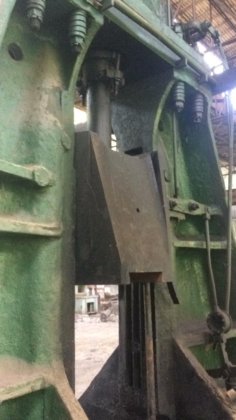

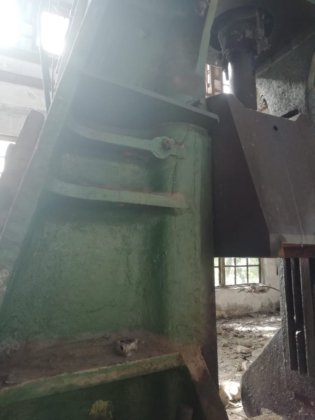

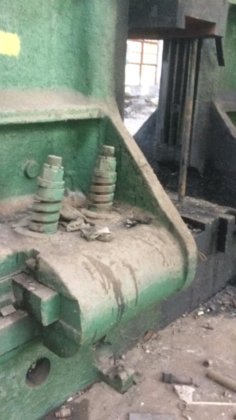

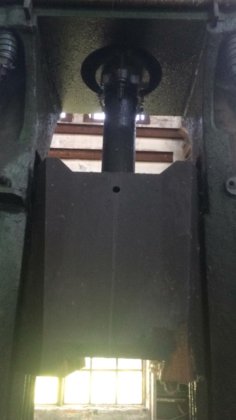

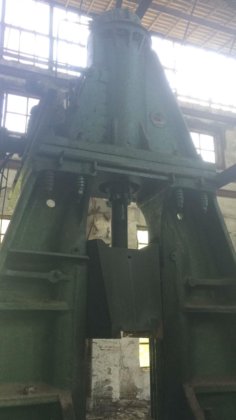

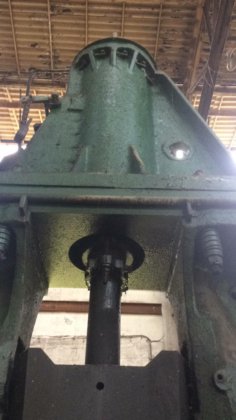

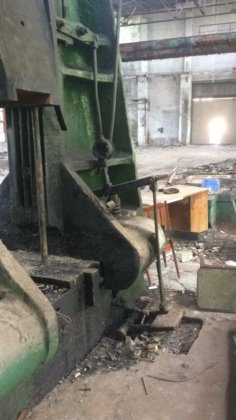

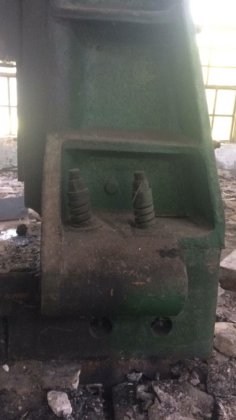

3,15 t. Air Drop Forging Hammer Voronezh type M213. GDP-REF-Nr. A1523 in Germany
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
Description
Nominal mass of drop parts kg 3150
Rated striking energy 80 KJ
Max. no. of blows/min. 60
Ram stroke 1250 mm
Uprights distance in daylight 710 mm
Ram dimensions from front to back 800 mm
Die holder from front to back 1000 mm
Min. die holder to ram distance 340 mm
Steam/air pressure 0.7-0.9 MPa
Dimensions 4100 x 1900 x 5700 mm
Mass of anvil block 63 t.
Mass of hammer total 89 t.

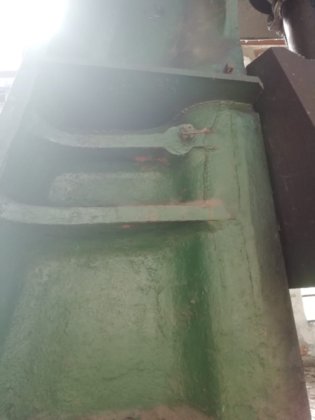

Technical condition: the hammer is complete, but in one part of frame there is welded crack.
Therefore is the price very cheap. The delivery EXW, FCA, DAP, CFR, CIF is possible
The hammer`s parts can be sold as spar parts too
- Subject to prior sale -
- With the right for shorthand, technical mistakes and typos, not-binding -
