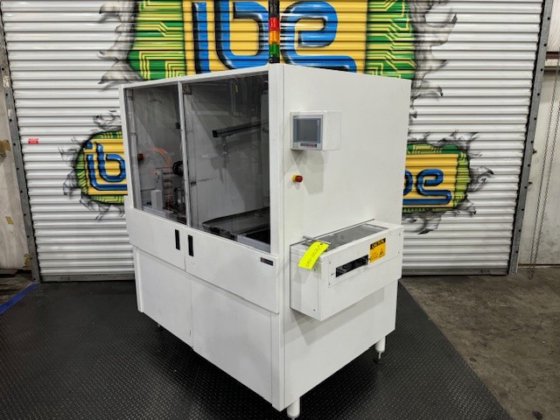

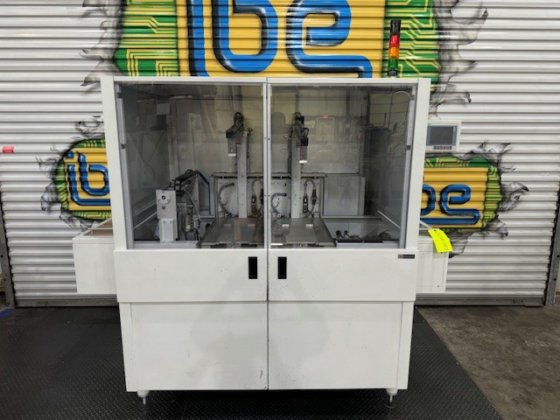

2016 ASYS Magazine Buffer in Magnolia, TX, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2016
- Stock number
- 240311-020
- Subcategory
- Conveyors
- Listing ID
- 35276301
Description

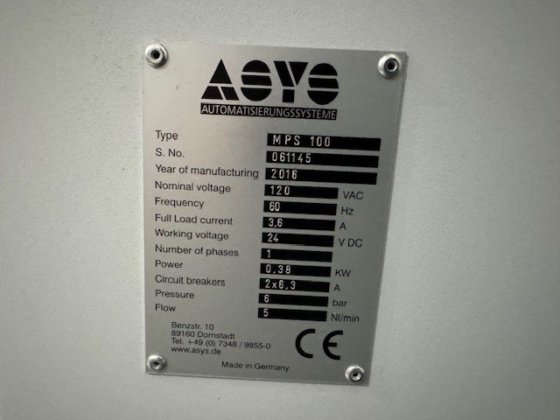

Model: MPS 100
18" Max Board Width
Pass Through Mode
The buffer combines the functionality of magazine loader
and unloader in one unit. Incoming PCB’s can be stored in a
magazine and on demand from a following unit they can be
pushed out and transferred. The unit is equipped with a conve-
yer underneath the magazine for pass-through mode.

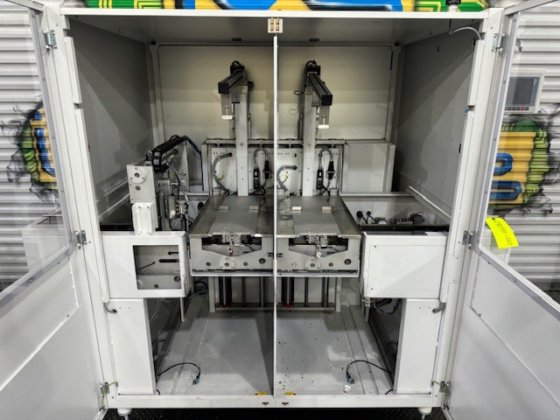

This unit is also equipped with two magazines and two
magazine axles
This allows a high buffer capacity,
three sorting possibilities and also the possibility of a separate
use for each magazine. For example the unit can be used with
the first magazine as a storage unit and the second
magazine as a loading unit, both functioning independently of
each other.
Features
-Variable operating modes:
- Pass-through
- Load
- Unload
- Input transfer
- Output transfer
- LIFO
- FIFO
- Sorting
- Cooling
_ Changeable magazine
_ Pass- through conveyor underneath the magazine platform
_ Error loop
_ Electric width adjustment
