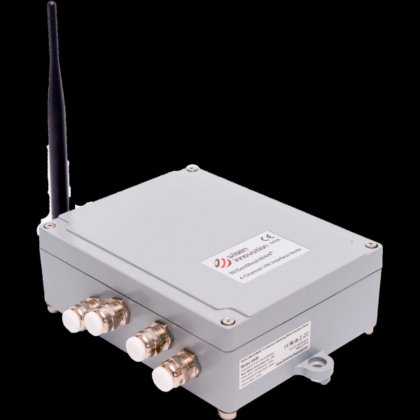

Channel Vibrating Wire Interface Node in Ames, Spain
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Model
- 6A07: 1 x VW Interface Node; 6A08: 4 x VW Interface Node
- Battery power
- 1 primary lithium battery 3.6V type D (ER34615); 2 primary lithium batteries 3.6V type D (ER34615)
- Stopping voltage for precision
- 2.7VDC
- Stopping voltage for mesh network
- 2.1VDC
- Battery connection
- Standard aluminum battery holder
- Working current (dc)
- Max. 60mA (Typical 48mA)
- Local storage
- Minimum 450 messages during mesh connection
- Dimensions (l x w x h)
- 100 x 100 x 60 mm; 180 x 140 x 60 mm
- Weight
- 0.60 kg
- Size and weight of the external sensor
- Depends on the connected VW sensor (external cable length ≤ 1.1 km)
- Strain relief
- 1
- Category
- Sensors in Spain
- Subcategory
- Wireless sensors
- Subcategory 2
- Rail & monitoring
- Listing ID
- 110771302
Description
The WiSenMeshWAN® VW interface node is compatible with all brands and types of high-quality vibrating wire sensors, so it can be applied to any type of related monitoring project.
The WiSenMeshWAN® system offers dynamic and autonomous wireless data acquisition of geotechnical sensors using cutting-edge technology. The automated measurement of geotechnical sensors, which uses long-range wireless radio nodes and a SmartGateway, allows you to focus on more demanding tasks instead of manual data acquisition and logging.
The WiSenMeshWAN® sensor nodes are transmitters and receivers that create a self-forming dynamic radio mesh network that sends data to a SmartGateway. Users have full remote control of the system through direct, activated, or programmed changes, enabling dynamic measurements and reporting
