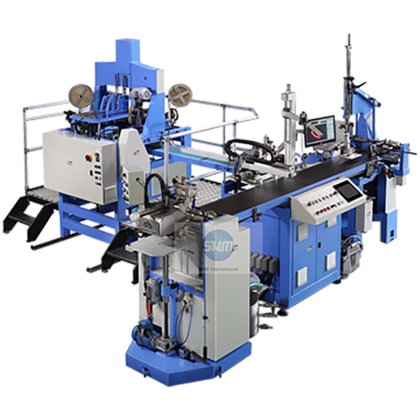

Automatic Rigid Box Maker with PLC Control and Precision Positioning in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Certification
- ISO9001, ISO, CE
- Shipping cost
- Contact the supplier about freight and estimated delivery time.
- Secure payments
- Every payment you make on is protected by the platform.
- Refund policy
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
- Application
- Commodity, Textile, Apparel, Gifts & Arts, Medical, Food
- Driven type
- Electric
- Automatic grade
- Automatic
- Max. paper size
- 305X450mm
- Min. paper size
- 45X110mm
- Max. box size
- 160X240mm
- Min. box size
- 35X45mm
- Transport package
- Wooden Case
- Specification
- 4500x4000x2600mm
- Hs code
- 8422303090
- Category
- Cartoning Machines in China
- Subcategory
- Packaging & printing
- Subcategory 2
- Machinery for packaging supplies
- Subcategory 3
- Carton machine & box making machine
- Listing ID
- 106826996
Description
Product Description
Automatic Rigid Box maker is a good equipment for making high-grade covered boxes for its fine design, reliable performances and international advanced technologies. It employs PLC, photoelectric detector system, hydraulic rectifying system, HMI to automatically finish feeding and gluing paper, conveying cardboard, forming and pasting four angles of cardboard, positioning, and forming box in one time. It is applicable to make high-grade boxes for phones, cosmetics, Jewelry, etc.
Specification
Paper size Min.45x110mmMax.305x450mm
Box size Min. 35x45mmMax.160x240mm
Paper thickness 80-160g/m2
Cardboard thickness 0.5-3mm
Box height 12-80mm
Fold-in paper size 8-20mm
Precision ±0.50mm
Speed ≤32sheets/min
Power 13kw 380V 3phase
Weight 3300kg
Dimension 4500x4000x2600mm
