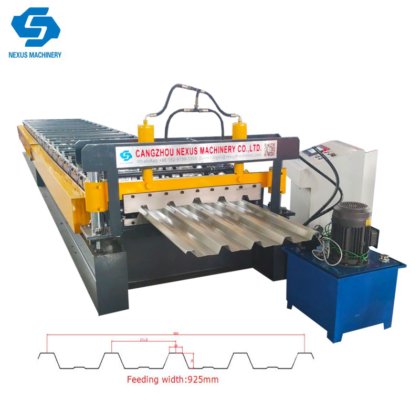

IBR686 Roofing Sheet Roll Forming Machine in Cangzhou, Hebei, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Forming steps
- 16-18 stations for IBR sheet
- Shaft diameter
- 70mm
- Design type
- Middle plate welded
- Machine frame
- 350# H steel welded
- Roller material
- 45# steel, surface hard chromium plating.
- Shaft material
- 45# steel
- Work speed
- 25m/min
- Transport
- By 1 inch single chains
- Power of main machine
- 5.5 kw
- Type of cutting
- Hydraulic
- Cutting tolerance
- ±1mm
- Category
- Bending & Forming in China
- Subcategory
- Cold roll forming machines
- Subcategory 2
- Roof sheet roll forming machine
- Listing ID
- 106730332
Description
IBR686 Roofing Sheet Roll Forming Machine makes chromadek IBR roof sheet with both 925mm and 1000mm coil width, which is very popular in Africa market. The main material is pre-painted galvanized steel,galvanized steel and Aluminum sheet. Thickness range from 0.20-0.70mm. Work speed can reach 25m/min.
